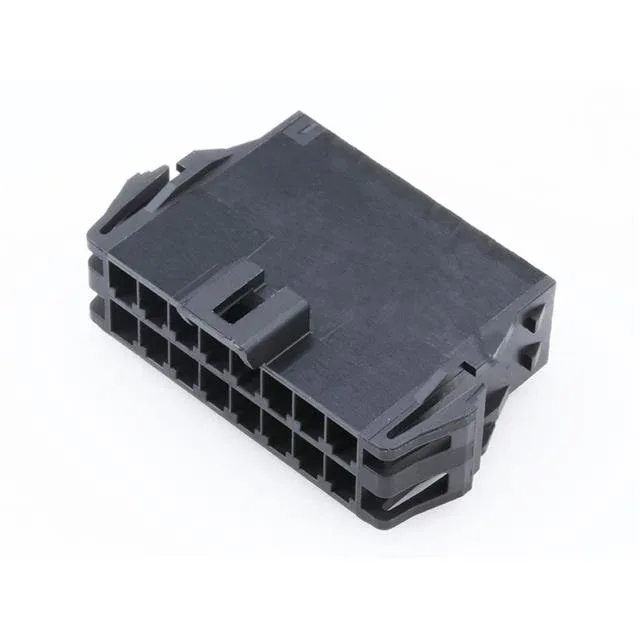

Molex Ultra-Fit 216945 series, Plug, 8 positions, 2 rows, 0.138" (3.50mm) pitch, Panel Mount, Crimp, Female Socket, Latch Holder, Black, Glow Wire Compliant.
| Parameter | Value |
|---|---|
| Series | Ultra-Fit 216945 |
| Gender | Female Socket |
| Mounting type | Panel Mount |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 120°C |
| Color | Black |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bag |
| Features | Glow Wire Compliant |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 8 |
The Molex 2169453108 is an 8-circuit, dual-row plug from the Ultra-Fit 216945 series.
This plug accepts female socket contacts terminated by crimp (contact termination style is crimp, per the spec). The mating receptacle is the Ultra-Fit 216945 series header — confirm the position count and pitch match your harness layout. The latch holder locks the pair together without requiring a secondary screw or clip, which speeds field assembly.
The mating half is an Ultra-Fit 216945 series header with the same 8-circuit, dual-row, 3.50 mm pitch configuration. The latch holder on the plug engages the corresponding feature on the header.
This plug accepts female socket contacts terminated by crimp. Use the Ultra-Fit 216945 series crimp terminals — the contact termination style is crimp, and the housing is designed for those terminals.
