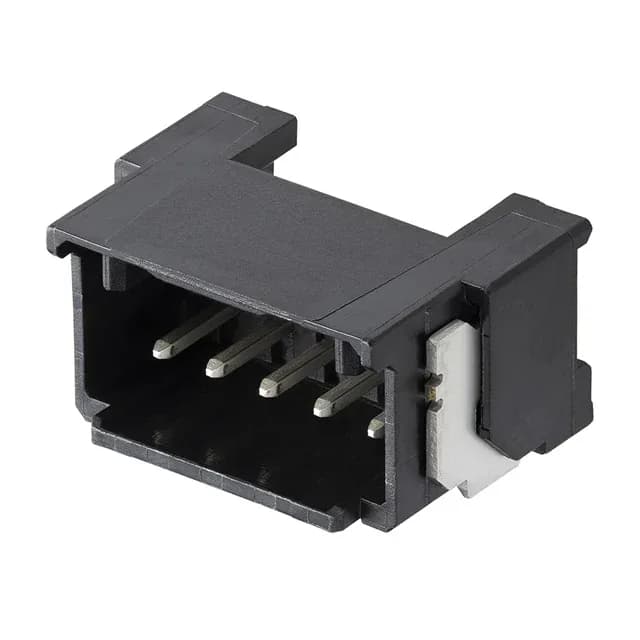

Molex 217064, 2.00mm pitch, 5-position single-row header, right-angle SMT, shrouded-4-wall, latch lock, tin-bismuth contacts, UL94 V-0
| Parameter | Value |
|---|---|
| Series | 217064 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Lock |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.283\" (7.19mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 5 |
| Contact finish - post | Tin-Bismuth |
| Contact finish - mating | Tin-Bismuth |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
This is a common choice for sensor harnesses, actuator links, or any signal interconnect where the cable sees movement during service.
Termination is solder via surface-mount pads — no through-holes, so the backside of the board stays clear for routing. Insulation height is 0.283" (7.19 mm) above the board surface after mounting.
This part is sourced through independent distribution against your BOM quantity.
This is a male pin header that mates with a matching 5-circuit receptacle from the same 217064 series. The latch lock on the header engages with the receptacle's locking ramp for vibration-resistant retention.
