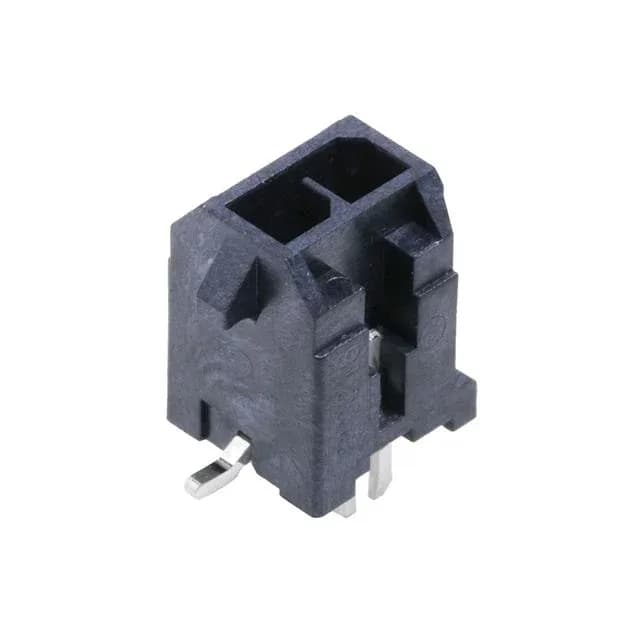

Molex Micro-Fit+ 218216 series, 2-circuit SMT header, shrouded 4-wall, locking ramp, 12.5 A per contact, 600 VAC/DC, tin-plated male pins, board lock, pick-and-place cap, -40°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro-Fit+ 218216 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC/DC |
| Current rating | 12.5A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.390\" (9.91mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Positions | 2 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The pick-and-place cap (included in the tape-and-reel package) lets automated assembly equipment handle the header without damaging the pins or the latch. Row spacing is 0.118" (3.00 mm) — the same pitch as the standard Micro-Fit 3.0 family, so the board footprint is compatible with existing Micro-Fit receptacle layouts.
Sourced to order through independent distribution against an RFQ.
The mating half is a Micro-Fit+ receptacle housing (same series) that accepts 20-24 AWG crimp terminals. The locking ramp on the header engages the receptacle latch.
Yes, it is ROHS3 compliant per the manufacturer's status.
Row spacing is 0.118" (3.00 mm), matching the standard Micro-Fit 3.0 footprint.
