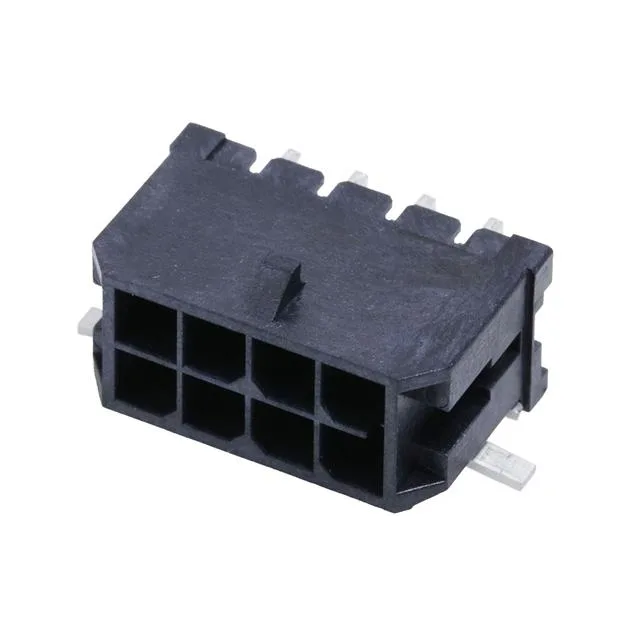

Molex Micro-Fit+ 218216 header, order code 2182160800, 8 positions, dual row, 0.118" (3.00mm) pitch, 600VAC/DC, tin-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Micro-Fit+ 218216 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC/DC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.291\" (7.40mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 2182160800 is the 8-circuit member of Molex's Micro-Fit+ 218216 shrouded header line for board-to-cable/wire applications.
A 4-wall shroud with a locking ramp protects the pins and provides audible mating retention with the matching receptacle housing. The glass-filled LCP insulation (UL94 V-0) stands 0.291" (7.40mm) above the board; solder retention features hold the SMT body during reflow.
The 2182160800 is orderable under the listed part number.
