8-circuit board-to-wire header

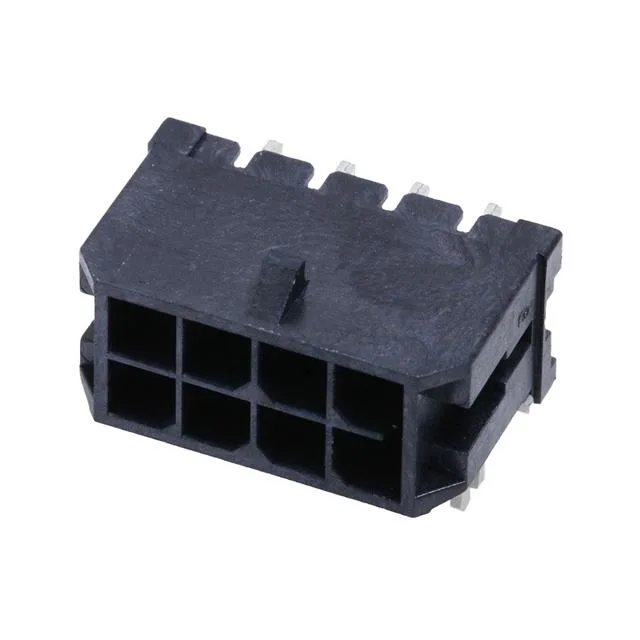

The 2182160810 is the 8-circuit member of Molex's Micro-Fit+ 218216 board-to-wire header line, carrying 600VAC/DC and rated for current varying with wire gauge. Tin-plated square male pins, dual-row at 0.118" (3.00 mm) pitch, mount surface-mount right-angle with solder termination.
Shroud, lock, and board retention
A 4-wall shrouded housing with a locking ramp protects the pins and secures the mating receptacle; board locks and retention clips hold the header during reflow and against cable strain. The LCP glass-filled housing carries a UL94 V-0 flammability rating and operates from -40°C to 105°C.
