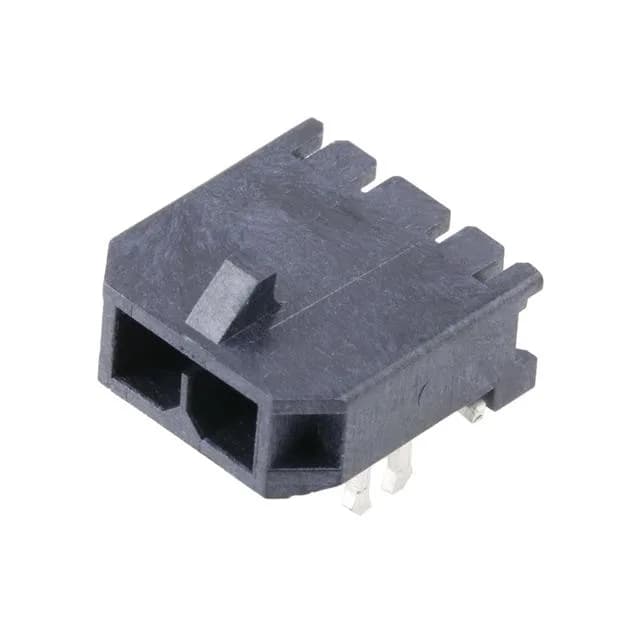

Molex Micro-Fit+ 218989 series, 2189890210, Board to Cable/Wire header, 2 circuits, 3.00 mm pitch, SMT right-angle, shrouded with locking ramp, 13 A per contact, UL94 V-0 LCP housing, tin-plated contacts.
| Parameter | Value |
|---|---|
| Series | Micro-Fit+ 218989 |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC/DC |
| Current rating | 13A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.173\" (4.40mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Retention Clips |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The LCP glass-filled housing handles lead-free soldering profiles without distortion.
Rated 13 A per contact at 600 VAC/DC, this header carries moderate power for a 2-circuit interconnect.
Insulation height is 0.173" (4.40 mm) — the mated stack height with the matching receptacle is a few mm taller, so budget that clearance above the board.
ROHS3 compliant — meets current environmental requirements for EU and other regulated markets.
Sourced through independent distribution against your BOM quantity.
Mates with a Micro-Fit+ 2-circuit receptacle housing (e.g., Molex 218989 series) using the matching crimp terminals. The locking ramp on the header engages the receptacle latch for a vibration-resistant connection.
