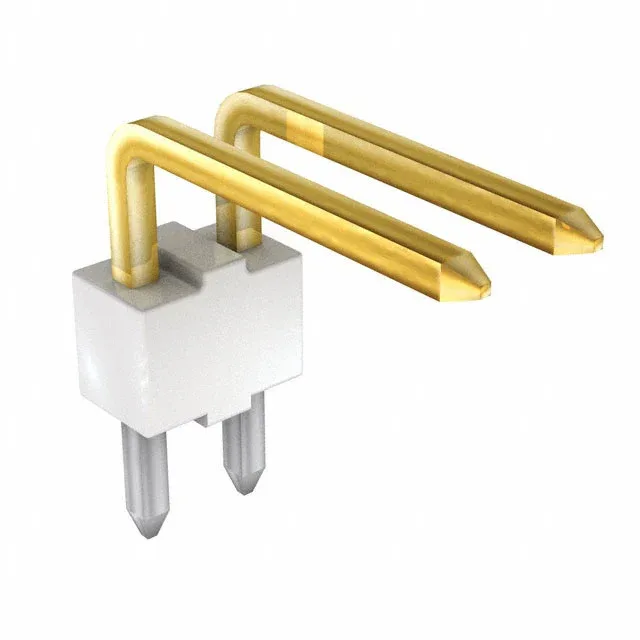

Molex 22122021
MPN22122021
Active
CONN HEADER R/A 2POS 2.54MM
$0.6Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKK254, 4094
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 4094 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | White |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.124\" (3.15mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.369\" (9.37mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
