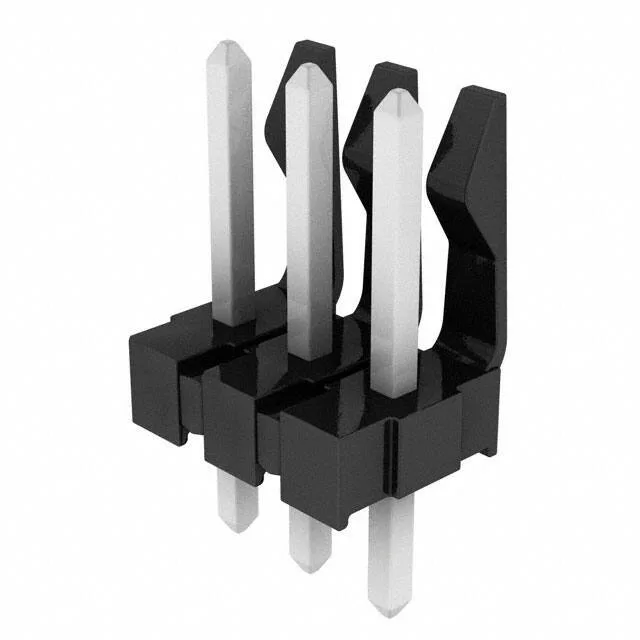

CONN HEADER VERT 3POS 3.96MM
$0.47Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | KK396, 41671 |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.500\" (12.70mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.172\" (4.37mm) |
| Overall contact length | 0.750\" (19.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
Sourcing this connector
Molex 26481035 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Molex and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
