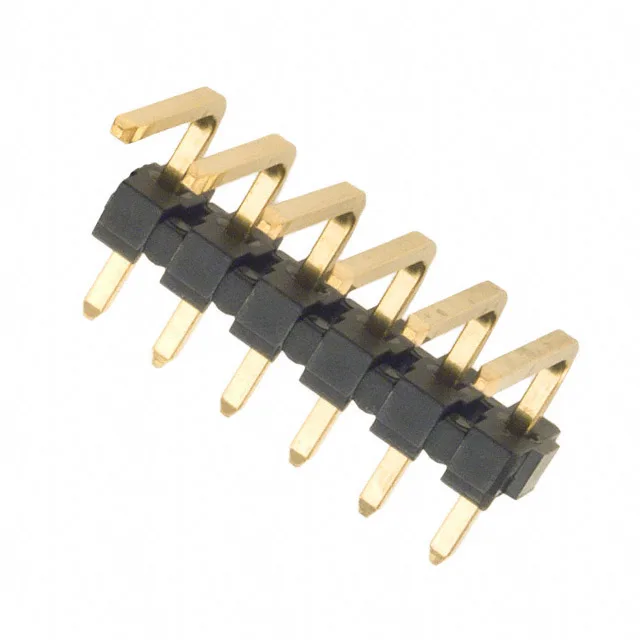

Molex 26482062
MPN26482062
Active
CONN HEADER R/A 6POS 3.96MM
$2.41Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKK396, 41662
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK396, 41662 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.128\" (3.25mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.184\" (4.67mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.573\" (14.55mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
