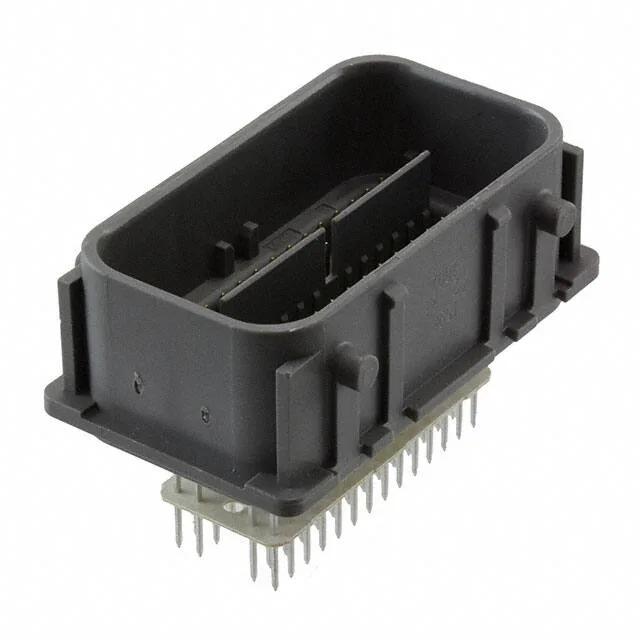

Molex 313862002
MPN313862002
Active
CONN HEADER VERT 56POS 2.54MM
$18.8Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMX123 31386
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MX123 31386 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | Gray |
| Insulation height | 0.848\" (21.54mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Applications | Automotive |
| Contact shape | Square |
| Rows | 4 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 56 |
| Contact finish - post | Tin |
| Contact length - post | 0.256\" (6.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 200.0µin (5.08µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
