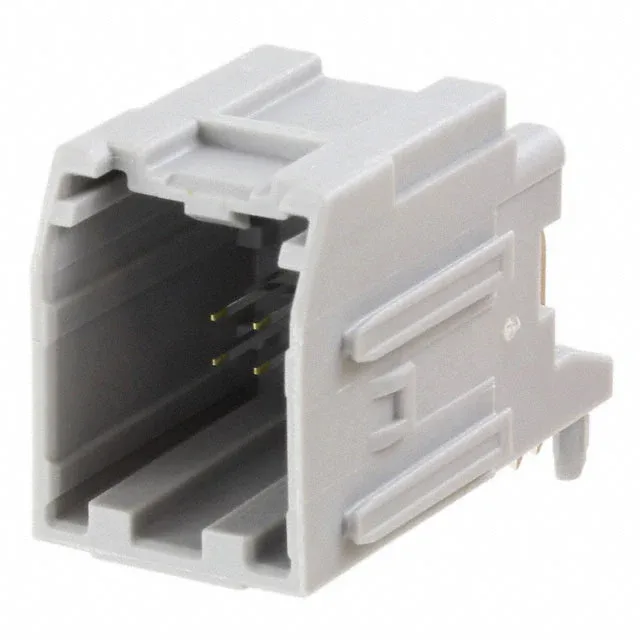

Molex 346916081
MPN346916081
Active
CONN HEADER R/A 8POS 2.54MM
$2.19Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesStac64 34691
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Stac64 34691 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Cartridge Brass |
| Insulation color | Gray |
| Insulation height | 0.868\" (22.05mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.119\" (3.02mm) |
| Contact finish - mating | Tin |
