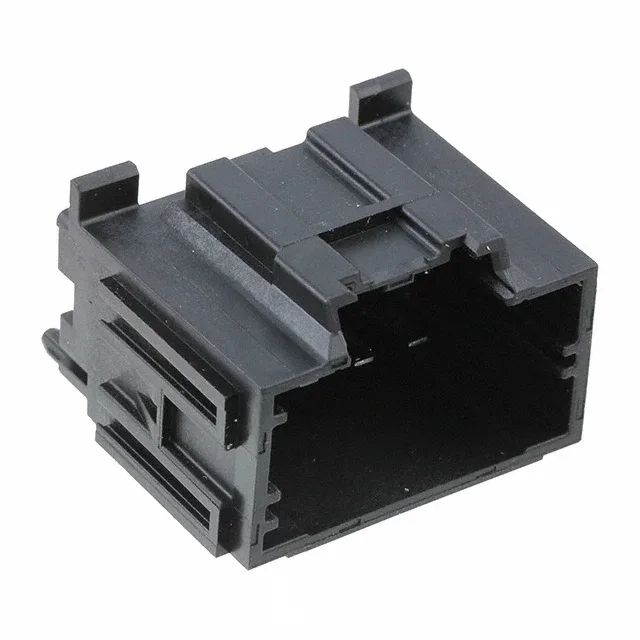

Molex 346950100
MPN346950100
Active
CONN HEADER VERT 10POS
$3.31Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesStac64 34695
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Stac64 34695 |
| Type | Male Blade; Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 500V |
| Operating temperature | -40°C ~ 100°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.104\" (28.04mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Rectangular, Square |
| Rows | 2 |
| Positions | 10 (6 + 4 Power) |
| Row spacing - mating | 0.248\" (6.30mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.117\" (2.97mm) |
| Contact finish - mating | Tin |
