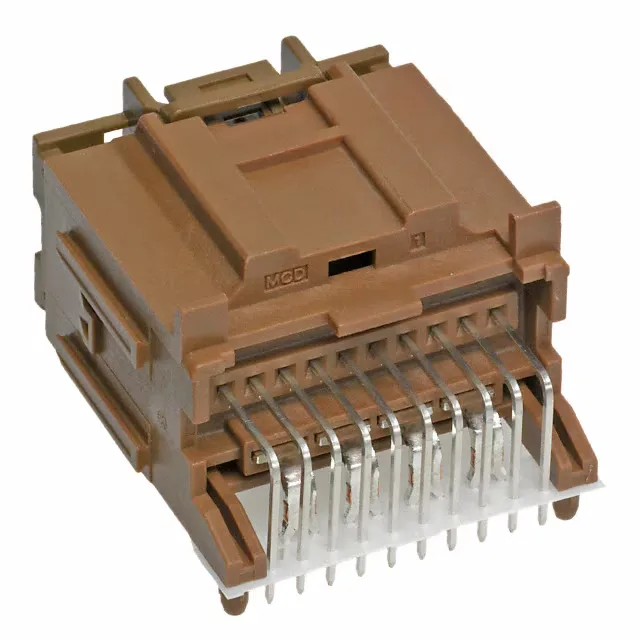

Molex 347730140
MPN347730140
Active
CONN HEADER R/A 14POS
$6.47Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesStac64 34773
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Stac64 34773 |
| Type | Male Blade; Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 500V |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.868\" (22.05mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Rectangular, Square |
| Positions | 14 (10 + 4 Power) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
