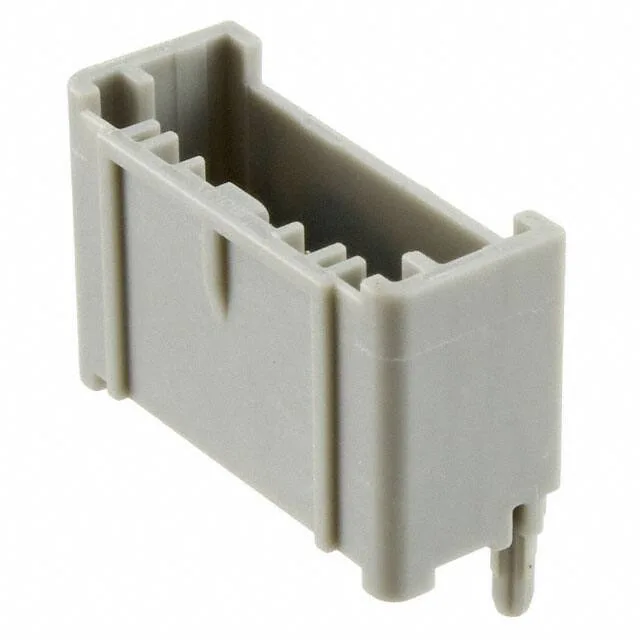

Molex 347920081
MPN347920081
Active
CONN HEADER VERT 8POS 2MM
$1.93Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini50 34792
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini50 34792 |
| Type | Male Blade |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.575\" (14.60mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.051\" (1.30mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.218\" (5.55mm) |
