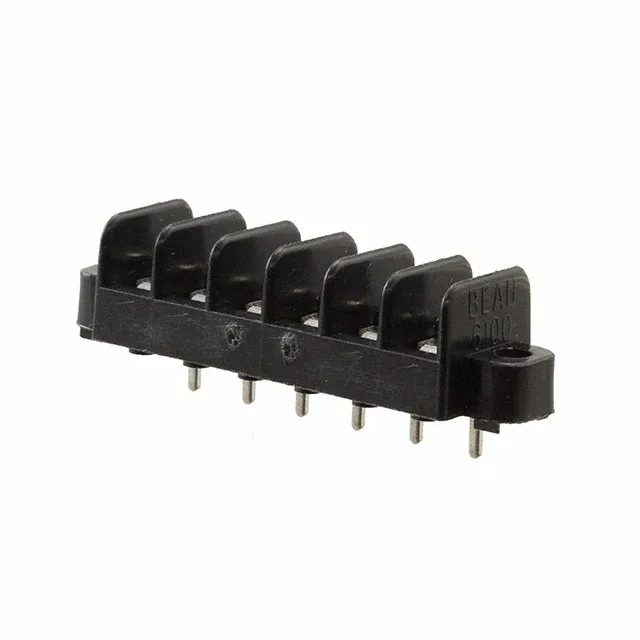

The Molex 386106406 is the 6-circuit member of the Beau 38610 single-row barrier strip series, rated 10 A per circuit at 300 V with top screw termination and bottom PC-pin for through-hole board mounting. The flange feature provides a secondary mounting point at the connector body, which matters in panel或DIN-rail installations where vibration or mechanical strain on the wire entry is a concern. Wire entry is sized for 18–22 AWG conductors, and the dual-wall barrier construction keeps adjacent circuits isolated to UL94 V-0 flammability standard.
Molex Beau 38610 barrier block strip, 6 circuits single row, 0.250in (6.35mm) pitch, 10 A at 300 V, top termination screws with bottom PC pin, flange-mount, through-hole, 18-22 AWG, black UL94 V-0 thermoplastic housing, nickel-plated brass screws.
$4.17Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Beau 38610 |
| Voltage | 300 V |
| Current | 10 A |
| Mounting | Through Hole |
| Wire AWG | 18-22 AWG |
| Color | Black |
| Pitch | 0.250" (6.35 mm) |
| Package | Tray |
| Features | Flange |
| Rows | 1 |
Product details
Frequently asked questions
What pitch does the 386106406 use?
0.250 inches (6.35 mm) pitch, single-row barrier strip.
What color is the 386106406 housing?
Black, with a UL94 V-0 rated thermoplastic body and nickel-plated brass terminal screws.
What wire gauge does it accept?
18–22 AWG conductors via top screw entry with 6 individual wire entries.
What compliance documentation is available for the 386106406?
ROHS3 Compliant status is confirmed in the lifecycle record; the housing carries a UL94 V-0 flammability rating. Specific UL or VDE certification documents should be requested directly from the manufacturer or verified in the product drawing.
