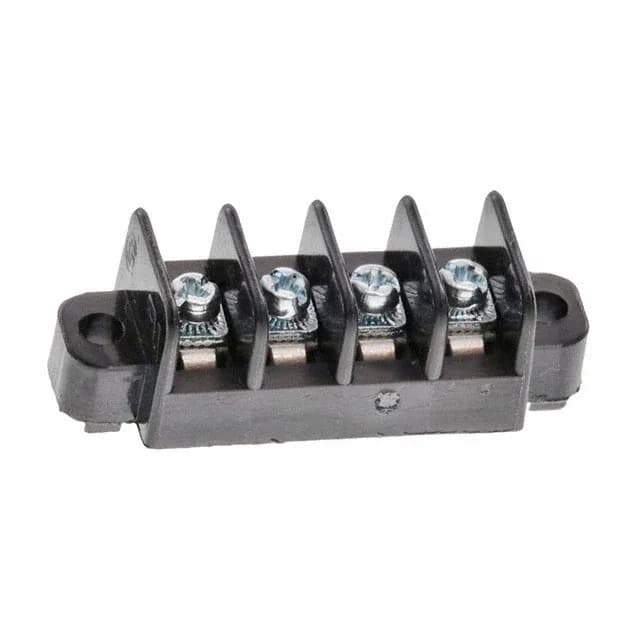

Molex Beau 386107604 Barrier Block 4-Position 0.250" 10A
MPN386107604
Active
Molex Beau 38610, 4-position dual-wall barrier block, 0.250" (6.35mm) pitch, 10 A per circuit at 300 V, flange-mount through-hole, black thermoplastic housing rated UL94 V-0. Top termination: screws with captive plate. Bottom termination: PC pin. Accepts 18-22 AWG.
$3.79Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38610
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Beau 38610 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 10A |
| Wire gauge | 18-22 AWG |
| Number of wire entries | 4 |
| Color | Black |
| Material - insulation | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.250\" (6.35mm) |
| Package | Tray |
| Features | Flange |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | PC Pin |
| Number of circuits | 4 |
Frequently asked questions
How do I get current pricing and availability for 386107604?
The part is sourced to order against your BOM quantity through independent distribution — availability and current pricing are confirmed at quote time, with no stock-holding commitment implied.
What compliance documentation does 386107604 carry?
The part is listed ROHS3 Compliant and the housing is rated UL94 V-0 for flame retardance. Specific UL or VDE agency ratings — where applicable — should be verified against the current product drawing before submission to a compliance dossier.
