Molex 386307802

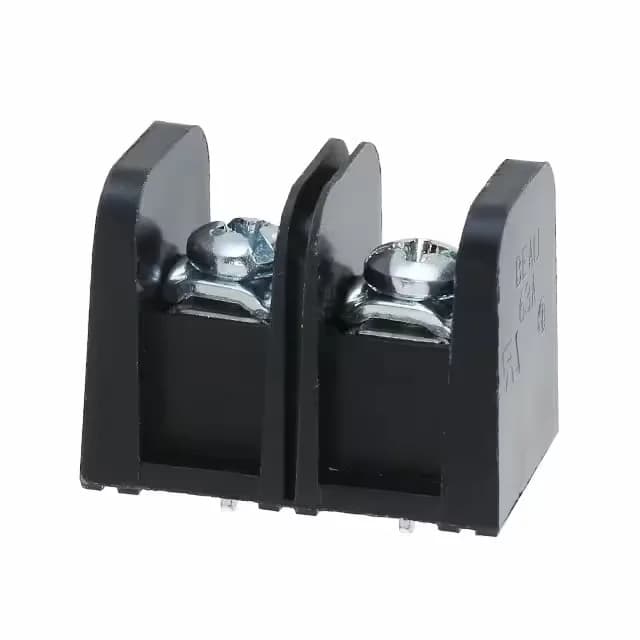

Molex Beau 38630 386307802, 2-Circuit Barrier Strip, 25 A, 600 V

MPN386307802
Active

Molex Beau 38630 386307802, 2-circuit barrier strip terminal block, 0.438" (11.12 mm) pitch, 1 row, through-hole, PC pin bottom termination, top screws with captive plate, 25 A, 600 V, 12-24 AWG, black PBT housing, bulk.

$3.11Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38630
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

386307802 specifications
ParameterValue
SeriesBeau 38630
Barrier type2 Wall (Dual)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating600V
Current rating25A
Wire gauge12-24 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries2
Terminal screw materialSteel
ColorBlack
Material - insulationPolybutylene Terephthalate (PBT)
Pitch0.438\" (11.12mm)
PackageBulk
Rows1
Top terminationScrews with Captive Plate
Bottom terminationPC Pin
Number of circuits2

Product details

The Molex Beau 38630 386307802 is a 2-circuit barrier strip terminal block on a 0.438" (11.12 mm) pitch. It carries a 25 A current rating and a 600 V voltage rating, making it a straightforward choice for panel-level power distribution where you need a small number of field-wireable terminations on a PCB. The housing is black PBT, and the top termination uses screws with a captive plate — the plate stays captured in the screw, so you don't lose it during wiring.

The 0.438" (11.12 mm) pitch gives you enough creepage distance to support the 600 V rating without needing a wide board footprint — each circuit sits well apart, which also makes routing traces between the pins straightforward. The 25 A per circuit is a genuine power rating, not a signal-level figure: each terminal can carry a motor feed or a heater load, provided the wire is sized appropriately (12 AWG is the heaviest recommended). The dual-wall barrier (2 Wall) provides physical isolation between adjacent terminals, reducing the chance of accidental shorting during wiring or service.

The 386307804 is the 4-circuit version of the same barrier strip — same 0.438" (11.12 mm) pitch, same 25 A and 600 V ratings, same black PBT housing and PC pin termination. The only difference is the circuit count: 2 circuits here versus 4 on the 386307804. If your BOM calls for 2 positions, this is the one; if you need 4, the 386307804 drops into the same footprint pattern without changing the board layout for each position.

Frequently asked questions

What is the pitch of the 386307802?

The pitch is 0.438" (11.12 mm).

Where can I buy the 386307802?

The 386307802 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
