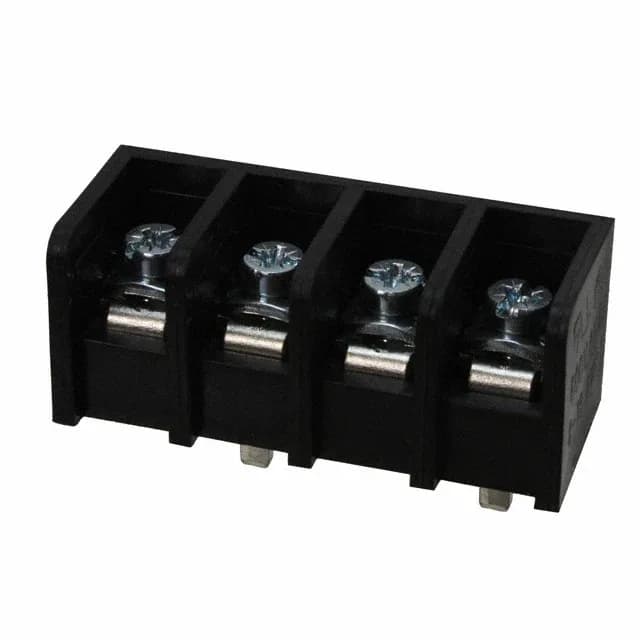

Molex Beau 38660 386608804, 4-Circuit Barrier Strip, 45A
MPN386608804
Active
Molex Beau 38660 barrier terminal block, 386608804, 4 circuits, 0.500" (12.70mm) pitch, 45 A, 600 V, 1 row, through-hole PC-pin, screws with captive plate, black PBT housing, 8-18 AWG, bulk.
$7.98Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38660
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Beau 38660 |
| Barrier type | 3 Wall (Tri) |
| Mounting | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 600V |
| Current rating | 45A |
| Wire gauge | 8-18 AWG |
| Terminal screw finish | Zinc, Yellow Chromate |
| Number of wire entries | 4 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 110°C |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polybutylene Terephthalate (PBT) |
| Pitch | 0.500\" (12.70mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | PC Pin |
| Number of circuits | 4 |
Frequently asked questions
What is the closest functional second-source for the 386608804?
The 386608805 is the 5-circuit sibling in the same Beau 38660 series with identical pitch, current, voltage, and wire range — same footprint per position, just one more circuit.
Will the 386608804 drop into a panel specified around the 386608805 without rewiring?
No — the 386608804 has 4 circuits, while the 386608805 has 5 circuits. The pitch, terminal hardware, and ratings are identical, but the position count is different, so the panel must be designed for 4 circuits.
