Molex 387006104

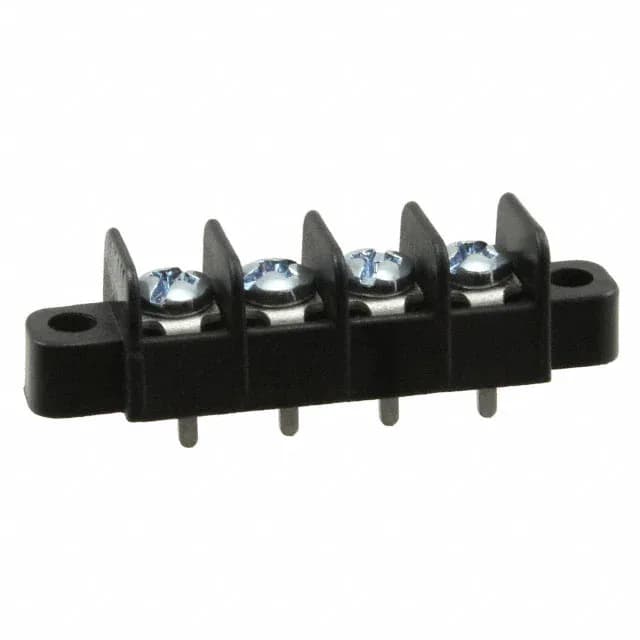

Molex Beau 38700 387006104, 4-Circuit Barrier Block, 0.325" Pitch

MPN387006104
Active

Molex Beau 38700 387006104, barrier block, 4 circuits, 0.325" (8.26mm) pitch, 1 row, 15 A, 300 V, dual-wall, screw top, PC pin bottom, through-hole/chassis mount, black, -40°C to 130°C.

$5.94Ref. price · indicative, final on quote
Molex 387006104 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBeau 38700
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

387006104 key specifications
ParameterValue
SeriesBeau 38700
Barrier type2 Wall (Dual)
MountingChassis, Panel; Through Hole
Terminal block typeBarrier Block
Voltage rating300V
Current rating15A
Wire gauge14-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries4
Terminal screw materialSteel
Operating temperature-40°C ~ 130°C
ColorBlack

All specifications

387006104 additional specifications
ParameterValue
Material - insulationThermoplastic
Pitch0.325\" (8.26mm)
PackageTray
FeaturesFlange
Rows1
Top terminationScrews
Bottom terminationPC Pin
Number of circuits4

Product details

The Molex Beau 38700 387006104 is a 4-circuit barrier block with a 0.325" (8.26 mm) pitch, designed for wire-to-board power distribution in control panels, industrial machinery, and power supplies. It uses a dual-wall (2 Wall) barrier construction to physically isolate adjacent circuits, reducing the risk of accidental shorts between terminals.

Top termination uses screws with a Zinc, Clear Chromate finish on steel screws, providing a corrosion-resistant clamping surface for 14-22 AWG wire. Bottom termination is PC pin for through-hole PCB mounting, with additional chassis/panel mounting via the flange.

Frequently asked questions

What is the pitch of 387006104?

The pitch is 0.325" (8.26 mm) between centers of adjacent terminals.

Will 387006104 drop into a panel wired for 387006103?

No — the 387006104 has 4 circuits versus 3 on the 387006103, so the panel must have space for the extra terminal position. The pitch, current rating, and termination style are identical, but the circuit count difference means the board footprint and wiring count do not match.

Where can I buy 387006104?

The 387006104 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
