Barrier strip, two positions, screw termination

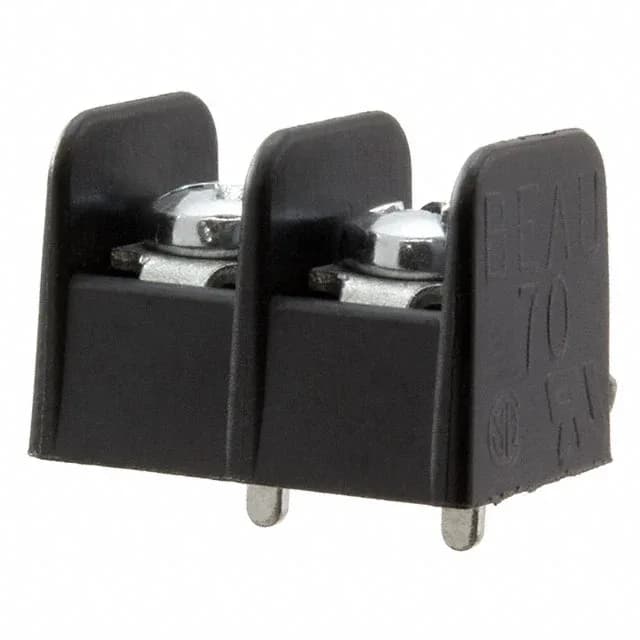

The Molex Beau 38700 387006302 is a 2-circuit barrier strip terminal block on a 0.325" (8.26 mm) pitch, rated 15 A at 300 V. It terminates top-side with captive screws and bottom-side with PC pins for through-hole soldering to a PCB. The dual-wall barrier (two walls between terminals) provides physical isolation between adjacent wire entries, which helps prevent accidental shorting during field wiring. Accepts 14-22 AWG wire — the screw clamps directly on the stripped conductor, no crimp terminal needed. Black thermoplastic insulation body rated -40°C to 130°C, RoHS3 compliant. This is the 2-position member of the Beau 38700 series. The 0.325" pitch is tight enough for a compact board layout but leaves room for a standard screwdriver tip to reach the terminal screws without shorting adjacent terminals. The through-hole PC pins lock the block into the board during wave solder — no separate mounting hardware required.
Position count and pitch match
The 2-circuit 387006302 shares the same 0.325" (8.26 mm) pitch, 15 A rating, and 300 V rating as the 3-circuit 387006303 and 4-circuit 387006304. The only difference between these three is the number of circuits — the footprint pattern repeats every 0.325" along the length of the block. For a panel-mount application with a flange, the 387006103 (3-circuit with flange) adds chassis-mounting ears while keeping the same pitch and ratings. The flange variant uses the same terminal spacing, so the wiring pattern transfers, but the board footprint changes because of the mounting holes.
