The 387203205: Top termination is via screws — steel screws with a zinc, clear chromate finish — accepting 14-22 AWG wire. The bottom termination uses insulated solder turrets, meaning the strip is wired from above and then soldered to a PCB or terminal block below. The flange on each end allows chassis or panel mounting with screws or rivets, keeping the block fixed during wiring and vibration.

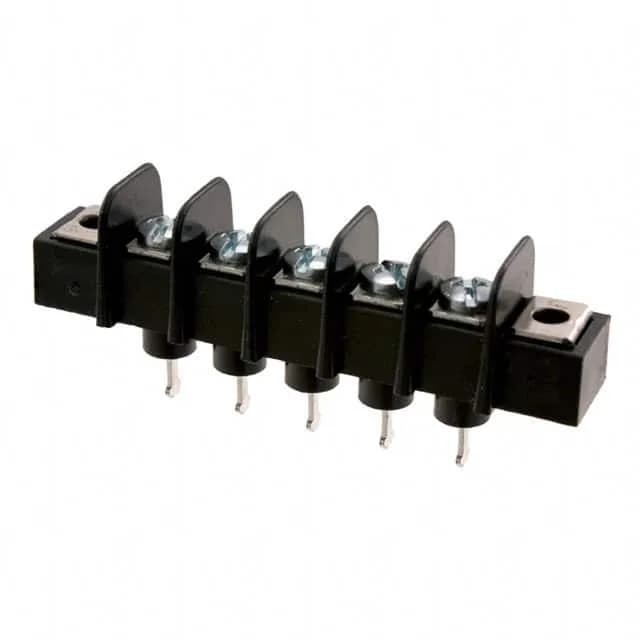

Molex Beau 38720 387203205 Barrier Strip, 5 Circuit, 0.375" Pitch
MPN387203205
Active
Molex Beau 38720 387203205, barrier terminal strip, 5 circuits, 0.375" (9.53mm) pitch, single row, 15A, 300V, dual-wall barrier, flange-mount chassis/panel, top screw termination, bottom solder turret, 14-22 AWG, black thermoplastic, ROHS3.
$6.06Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38720
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Beau 38720 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 15A |
| Wire gauge | 14-22 AWG |
| Terminal screw finish | Zinc, Clear Chromate |
| Number of wire entries | 5 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 100°C |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Thermoplastic |
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Features | Flange |
| Rows | 1 |
| Top termination | Screws |
| Bottom termination | Solder Turret, Insulated |
| Number of circuits | 5 |
Product details
Frequently asked questions
Will 387203205 drop into a panel specified for 387203206 without rewiring?
No — the 387203205 has 5 circuits while the 387203206 has 6 circuits. The pitch, mounting flange pattern, and terminal spacing are identical, so the panel cutout and hole positions match, but you will need one fewer wire entry.
What compliance documentation does the Beau 38720 series provide?
The 387203205 is ROHS3 compliant. No UL or IEC certification is stated in the listing; check with the manufacturer for specific agency documentation.
Where can I buy 387203205 and how is it quoted?
The 387203205 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
