Barrier Strip for Panel Wiring — 7 Circuits at 0.375" Pitch

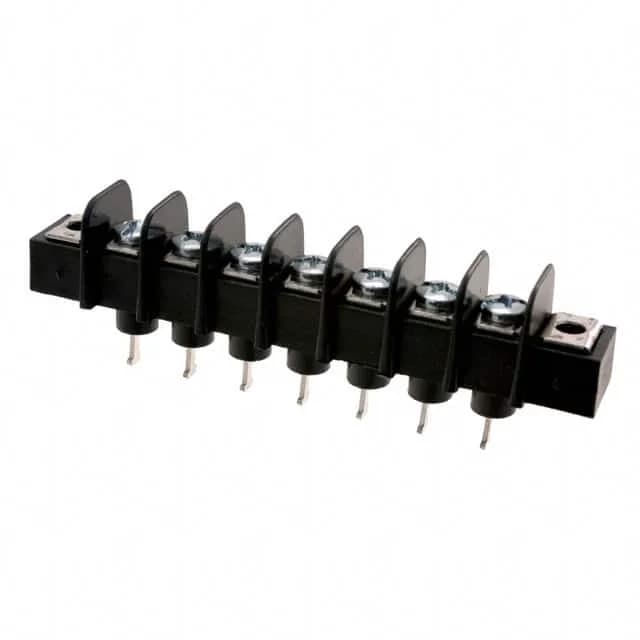

The Molex Beau 387203207 is a 7-circuit barrier terminal block from the Beau 38720 series, built for chassis or panel-mounted power distribution and control wiring. It carries a 0.375" (9.53 mm) pitch between terminals, rated 15 A per circuit at 300 V, with screw top termination for field wiring and solder turret bottom termination for permanent connections. The dual-wall barrier design isolates adjacent terminals, and the flange mounting lets you bolt it through a panel cutout. Black thermoplastic insulation rated -40°C to 100°C handles industrial cabinet and outdoor enclosure environments.
The 0.375" pitch accepts 14-22 AWG wire. The dual-wall barrier prevents accidental shorting. Screw top termination means you land field wiring with a screwdriver — no crimp tool needed. The solder turret bottom gives you a permanent connection point for PCB traces, busbars, or ring terminals. The zinc clear chromate steel screws resist corrosion in humid cabinet environments.
