The 387203302: The dual-wall barrier design (2 Wall (Dual)) separates each terminal with an insulating wall on both sides, reducing the chance of accidental shorting between adjacent circuits during wiring or service. Top termination is via screws with a zinc clear chromate finish on steel; bottom termination uses an insulated solder turret, so the block can be pre-wired to a harness or panel before final connection.

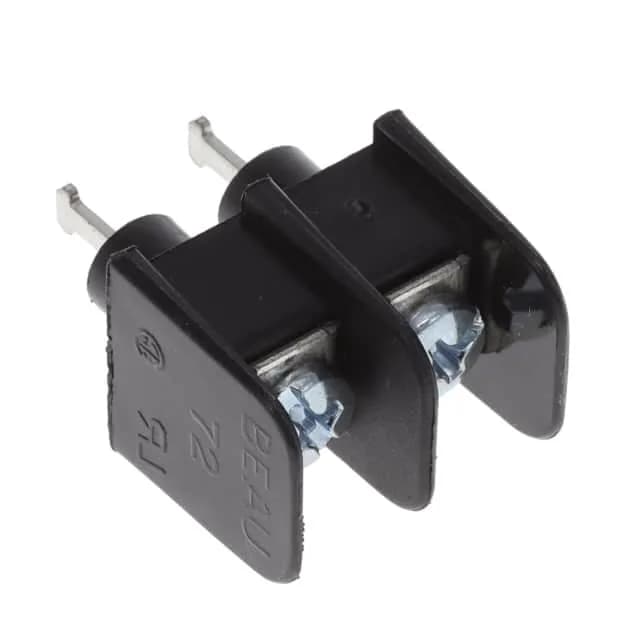

Beau 387203302 Barrier Strip, 2 Circuit, 0.375" Pitch, 15 A
MPN387203302
Active
Beau 38720 series barrier strip terminal block, 2 circuits, 0.375" (9.53mm) pitch, 1 row, 15 A, 300 V, chassis/panel mount, screw top / insulated solder turret bottom, accepts 14-22 AWG, black UL94 V-0 housing, -40°C to 100°C, ROHS3 Compliant.
$1.83Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38720
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Beau 38720 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 15A |
| Wire gauge | 14-22 AWG |
| Terminal screw finish | Zinc, Clear Chromate |
| Number of wire entries | 2 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 100°C |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polybutylene Terephthalate (PBT), Polyester |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws |
| Bottom termination | Solder Turret, Insulated |
| Number of circuits | 2 |
Product details
Frequently asked questions
Where can I buy the 387203302 and get a price?
The 387203302 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your quantity.
