Molex 387203803

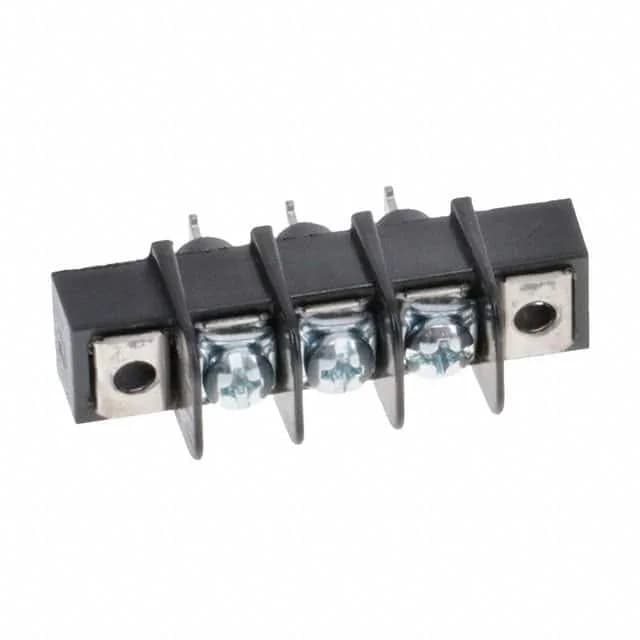

Molex Beau 38720 387203803 Barrier Strip, 3 Circuits, 25 A

MPN387203803
Active

Molex Beau 38720 barrier strip, 387203803, black, 3 circuits, 0.375" (9.53mm) pitch, 25 A, 300 V, flange mount, dual-wall barrier, screw with captive plate top termination, solder turret bottom, 12-22 AWG, -40°C to 100°C, ROHS3.

$4.51Ref. price · indicative, final on quote
Molex 387203803 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBeau 38720
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

387203803 key specifications
ParameterValue
SeriesBeau 38720
Barrier type2 Wall (Dual)
MountingChassis, Panel
Terminal block typeBarrier Block
Voltage rating300V
Current rating25A
Wire gauge12-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries3
Terminal screw materialSteel
Operating temperature-40°C ~ 100°C
ColorBlack

All specifications

387203803 additional specifications
ParameterValue
Material - insulationThermoplastic
Pitch0.375\" (9.53mm)
PackageBulk
FeaturesFlange
Rows1
Top terminationScrews with Captive Plate
Bottom terminationSolder Turret, Insulated
Number of circuits3

Product details

Barrier Strip for Panel and Chassis Wiring

The Molex 387203803 is a 3-circuit barrier strip from the Beau 38720 series, designed for panel or chassis mounting where a reliable, screw-terminated power distribution point is needed. The 0.375" (9.53 mm) pitch gives adequate spacing for 300 V working voltage and 25 A per circuit, with the dual-wall barrier providing physical isolation between adjacent terminals.

Top termination uses screws with a captive plate. Bottom termination is a solder turret, insulated. Wire range is 12-22 AWG. Terminal screws are steel with a zinc clear chromate finish.

Frequently asked questions

What is the pitch on the 387203803?

The pitch is 0.375" (9.53 mm) between centers.

Will the 387203803 drop into a panel cutout for the 387203204?

Yes — both share the same flange mount, dual-wall barrier, and 0.375" pitch, so the panel cutout and mounting pattern are identical. The 387203803 is 3 circuits; the 387203204 is 4 circuits, so the strip length differs by one position.

Where can I buy the 387203803 and how is it quoted?

The 387203803 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
