Molex 387207204

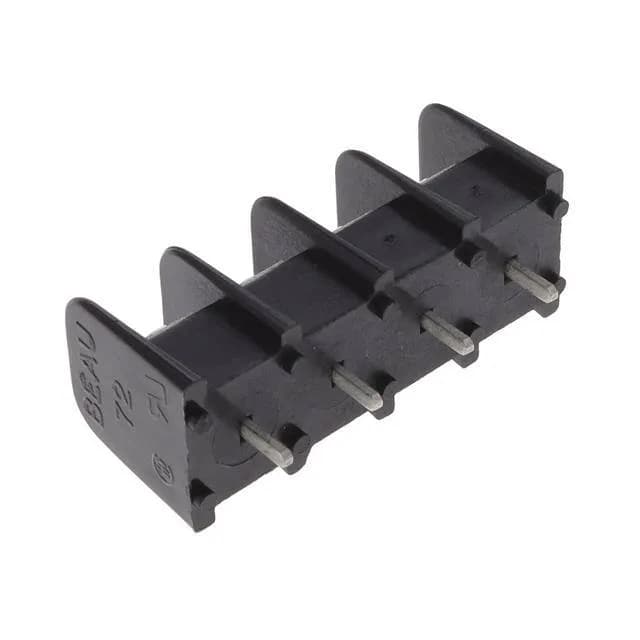

Molex Beau 38720 387207204 Barrier Strip, 4 Circuit, 0.375" Pitch, 15A

MPN387207204
Active

Molex Beau 38720 series 387207204 barrier strip, 4 circuits, 0.375" (9.53mm) pitch, single-row, dual-wall black housing, 15A at 300V, top screw and PC-pin bottom termination, 14-22 AWG, UL94 V-0, -40 to 100°C, bulk.

$3.83Ref. price · indicative, final on quote
Molex 387207204 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBeau 38720
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

387207204 key specifications
ParameterValue
SeriesBeau 38720
Barrier type2 Wall (Dual)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating300V
Current rating15A
Wire gauge14-22 AWG
Terminal screw finishNickel
Number of wire entries4
Terminal screw materialBrass
Operating temperature-40°C ~ 100°C
ColorBlack

All specifications

387207204 additional specifications
ParameterValue
Material - insulationThermoplastic
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
Rows1
Top terminationScrews
Bottom terminationPC Pin
Number of circuits4

Product details

Barrier Strip for Panel Wiring — 4 Circuits, 0.375" Pitch

The 387207204: Rated 15A at 300V. 0.375" pitch provides creepage for 300V. Operating temperature -40°C to 100°C.

15A per circuit, 14-22 AWG wire, brass screw with nickel finish. 300V rating line-to-line. Dual-wall barrier prevents bridging.

The 387206204 adds a flange for chassis or panel mounting, while the 387206812 is a 12-circuit version at the same pitch and ratings — useful if you need more positions without changing the terminal spacing.

Frequently asked questions

What is the closest functional alternative to the 387207204?

The 387206304 is the closest functional peer — same 4 circuits, same 0.375" pitch, same 15A/300V rating and 14-22 AWG wire range. The only difference is the terminal screw finish: nickel on the 387207204 versus zinc with clear chromate on the 387206304.

Where can I buy the 387207204 and what is the price?

The 387207204 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding or fixed price is listed here.

What compliance documentation does the 387207204 carry?

The 387207204 is ROHS3 compliant and the housing material carries a UL94 V-0 flammability rating. The operating temperature range is -40°C to 100°C.
