What this is

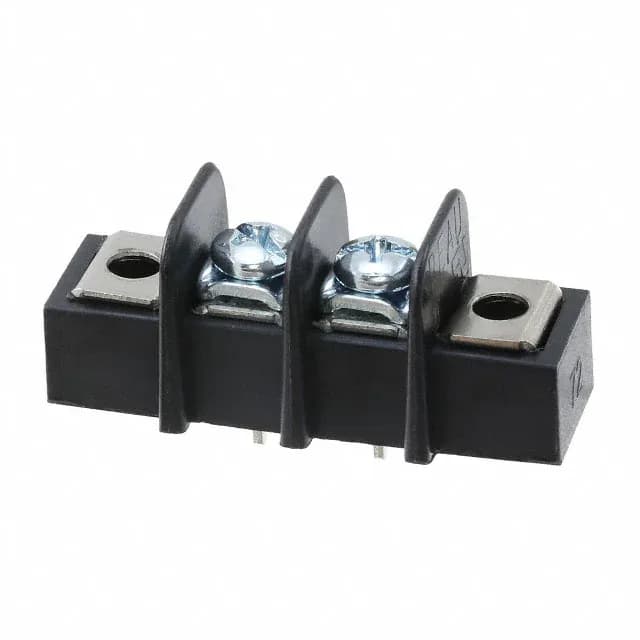

The Molex 387207402 is a 2-circuit Beau 38720 barrier strip — a single-row dual-wall (2-wall) barrier block with a 0.375-inch (9.53 mm) pitch. Top termination is screws with a captive plate; the bottom exits as a PC pin for through-hole board mount. Rated 25 A per circuit at 300 V, it accepts 12–22 AWG wire. The housing is black polybutylene terephthalate (PBT), rated UL94 V-0, and the flange feature gives it a secure panel-mount footprint. Operating range is -40 °C to 100 °C.
What the ratings mean for field fit
At 25 A per circuit, this is sized for power-distribution runs inside an enclosure — the 300 V rating covers most AC and DC control-level voltages in industrial panels. The dual-wall barrier construction adds creepage distance between adjacent circuits, which matters in damp or mildly contaminated panel environments where a single-wall block might track across under humidity. The captive plate on the screw top keeps the wire held under the head even if vibration works the screw loose — a ring lug under a screw, done right, without the conductor walking out. The flange gives a solid mounting face for a panel hole; without it, this class of block relies entirely on the body friction in the cutout. The 12–22 AWG window is wide for a 25 A block; the 12 AWG lower limit keeps it out of heavy feeder cable but covers the branch circuits it's meant to clean up in a panel. The zinc-clear-chromate screw finish resists the start of corrosion in a field box, but in a persistently humid environment a nickel-plated screw or a barrier cover kit is the move.
