Molex 387207502

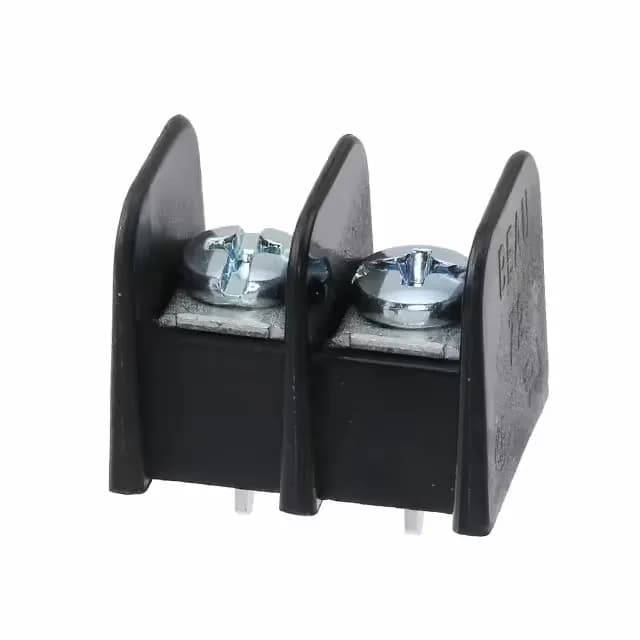

Molex Beau 38720 387207502 Barrier Strip, 2 Circuit, 0.375" Pitch

MPN387207502
Active

Molex Beau 38720 387207502, 2-circuit single-row barrier strip, 0.375" (9.53mm) pitch, 25 A, 300 V, through-hole, PC pin bottom, screw with captive plate top, 12-22 AWG, black UL94 V-0 thermoplastic.

$2.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38720
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

387207502 key specifications
ParameterValue
SeriesBeau 38720
Barrier type2 Wall (Dual)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating300V
Current rating25A
Wire gauge12-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries2
Terminal screw materialSteel
Operating temperature-40°C ~ 100°C
ColorBlack

All specifications

387207502 additional specifications
ParameterValue
Material - insulationThermoplastic
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
Rows1
Top terminationScrews with Captive Plate
Bottom terminationPC Pin
Number of circuits2

Product details

The 387207502: Top termination uses screws with a captive plate — the plate stays captured in the screw when loosened, so it does not drop out during field wiring. Wire range is 12-22 AWG; the dual-wall barrier (2 Wall) provides isolation between adjacent terminals.

This 2-circuit 387207502 shares the same 0.375" pitch, 25 A rating, and termination style as the 7-circuit 387207507 and the 12-circuit 387207512. The 387207402 adds a flange for chassis or panel mounting alongside the through-hole option.

Frequently asked questions

What compliance documentation is available for 387207502?

The part is ROHS3 compliant and the insulation is rated UL94 V-0. Operating temperature range is -40°C to 100°C.
