What the 387207512 is

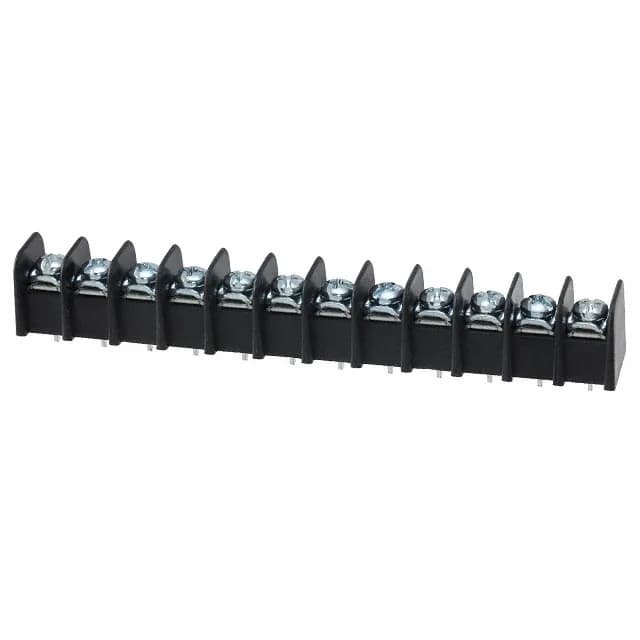

The Beau 387207512 is a 12-circuit single-row barrier terminal block in the Beau 38720 series, rated 25 A per circuit at 300 V with a 0.375 inch (9.53 mm) pitch between centres. The top termination uses screws with a captive plate that clamps the wire against a pressure bar — the captive plate prevents the screw from backing out of the housing during vibration or thermal cycling, which is the failure mode that kills ordinary pressure-clamp blocks in panel service. The bottom termination is a PC pin for through-hole soldering to a PCB or chassis rail.
Ratings that drive the selection
The 25 A per-circuit rating applies at the UL94 V-0 housing's thermal limit of 100 °C operating temperature — at lower ambient temperatures the block will run cooler, but the 12-22 AWG wire gauge window is the practical constraint on current: 12 AWG is sized for the full 25 A, while 22 AWG is the lower limit the clamp plate can grip reliably. The 300 V rating is the dielectric withstanding voltage across the barrier wall, not a signal or power classification — verify this against the actual circuit voltage, especially in any DC bus or rectified-AC application where peak voltage exceeds the RMS rating.
Where this class of connector is used
Barrier terminal strips like the 387207512 are the panel-workhorse for field wiring in industrial control cabinets, motor drives, and power distribution panels — they accept large-gauge field conductors under a screw clamp without requiring a crimp tool, making them the standard termination point for AC mains, motor branch circuits, and DC bus bars where a service technician needs to disconnect wiring without specialized tooling. The through-hole PC pin bottom makes it a hybrid component: the block lands on a PCB for the signal/control layer while the top screws terminate the harness conductors that enter the cabinet.
