What this block is and where it sits in the Beau 38721 series

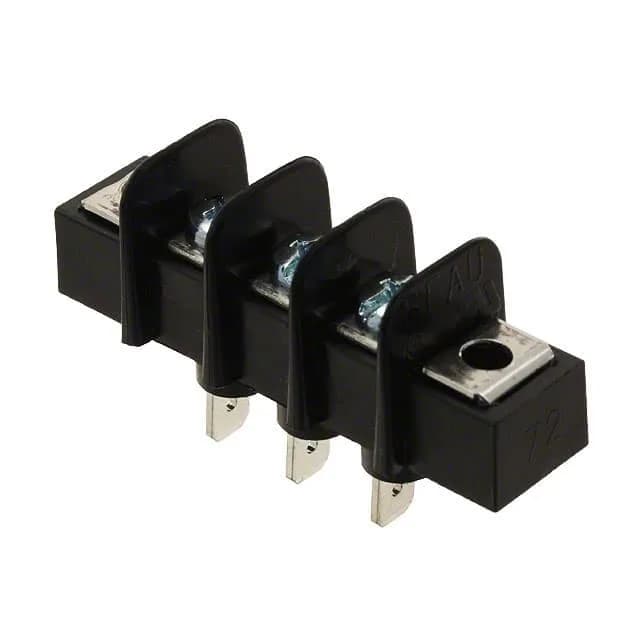

The Molex 387216703 is a 3-circuit single-row barrier strip in the Beau 38721 series — a panel and chassis wiring component built around a dual-wall barrier body with screw-clamp top termination and an insulated Quick Connect (0.187") on the bottom. At 0.375" (9.53 mm) pitch it is the narrower member of the 38721 family, accepting 14–22 AWG wire under the screw head — the steel screw with clear-chromate zinc finish bites into the conductor at the top, while the bottom Quick Connect lands a 0.187" insulated flag terminal on the load side. The PBT glass-filled housing carries a UL94 V-0 flammability rating and operates from −40 °C to 100 °C; the flange feature is the panel-mount anchor — two holes in the flange sit over the mounting bosses and the block is fastened down before field wiring begins.
What the ratings mean for your selection
The 15 A per circuit current rating and 300 V rating define a panel power distribution role — not a signal-level interlock. The block handles the branch feeder or distribution bus feeding multiple load circuits, where the barrier wall and dual termination provide the dead-front protection a panel builder needs. Three circuits and one row mean three independent feed points — the pitch (0.375" / 9.53 mm) controls the physical spacing between entries and therefore how tightly the wiring can be dressed on the panel face. For a dense panel with multiple blocks, check the combined z-height and adjacent block spacing against your enclosure layout. The 0.187" Quick Connect bottom termination is insulated — this means the load-side connection is a make-before-break flag, not a wire-to-wire splice. Confirm your downstream connector or load device accepts a 0.187" Quick Connect tab; if the panel downstream is a different tab size, a wire pigtail termination would be needed instead.
Sourcing posture and lifecycle
No official successor or cross-reference is listed for the 387216703 in the ledger. If the panel layout calls for a higher-position or higher-current member of the Beau 38721 series, confirm the base number 038721 and match the pitch and termination type before swapping — the series designation alone does not guarantee panel-cutout compatibility.
