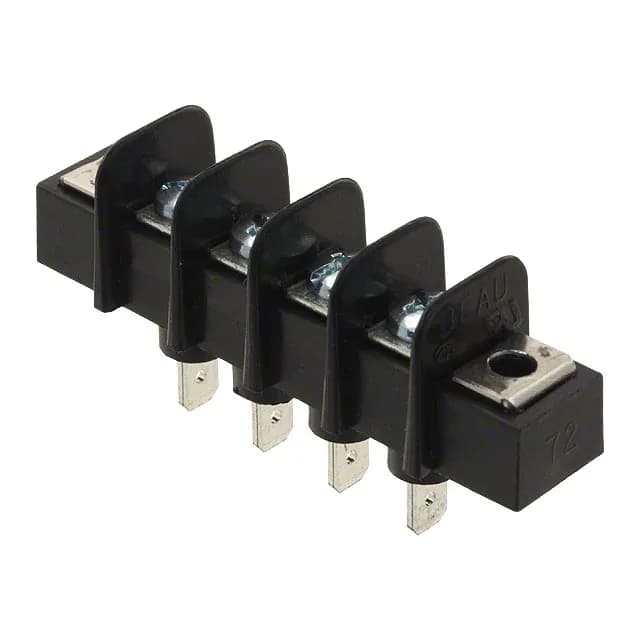

Molex Beau 38721 387216704, 4-Circuit Barrier Strip, 0.375" Pitch
MPN387216704
Active
Molex Beau 38721 barrier block, 4 circuits, 0.375" (9.53mm) pitch, 15A at 300V, screw top termination, quick-connect (0.187") bottom, black UL94 V-0 glass-filled PBT housing, chassis/panel mount, 14-22 AWG.
$3.94Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38721
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Beau 38721 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 15A |
| Wire gauge | 14-22 AWG |
| Terminal screw finish | Zinc, Clear Chromate |
| Number of wire entries | 4 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 100°C |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Features | Flange |
| Rows | 1 |
| Top termination | Screws |
| Bottom termination | Quick Connect (0.187\"), Insulated |
| Number of circuits | 4 |
Frequently asked questions
What are the key ratings of the 387216704?
It is rated 15A per circuit at 300V, accepts 14-22 AWG wire, and operates from -40°C to 100°C.
Will the 387216704 drop into a panel specified for the 387216703?
Yes, the 387216704 shares the same 0.375" pitch, mounting style, and termination as the 3-circuit 387216703, so it fits the same panel cutout and wiring scheme — just with one additional circuit.
