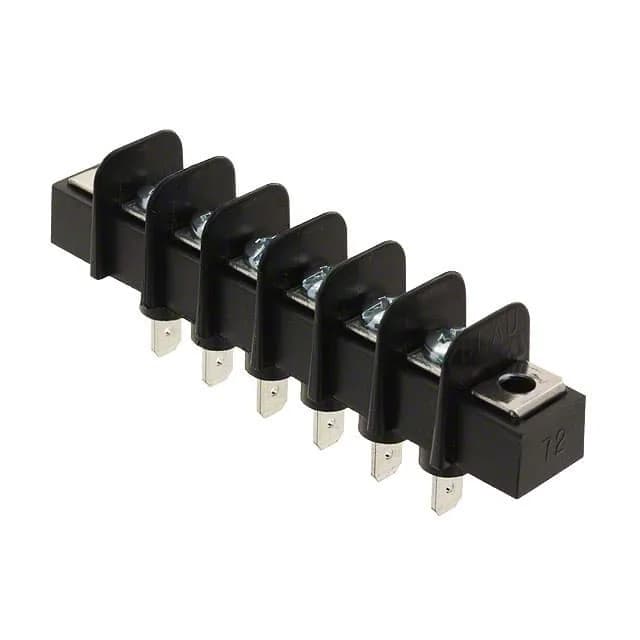

Molex Beau 38721 387216706, 6-circuit barrier strip, 0.375" (9.53mm) pitch, 1 row, 15A at 300V, chassis/panel mount, top screw / bottom quick-connect (0.187") insulated termination, 14-22 AWG, UL94 V-0 black PBT, bulk.
| Parameter | Value |
|---|---|
| Series | Beau 38721 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 15A |
| Wire gauge | 14-22 AWG |
| Terminal screw finish | Zinc, Clear Chromate |
| Number of wire entries | 6 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 100°C |
| Color | Black |
| Parameter | Value |
|---|---|
| Material - insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Features | Flange |
| Rows | 1 |
| Top termination | Screws |
| Bottom termination | Quick Connect (0.187\"), Insulated |
| Number of circuits | 6 |
Wire acceptance is 14-22 AWG, and the terminal screws are steel with a zinc clear chromate finish. The flange feature allows bolting the strip to a panel for secure mechanical retention.
Active product status, ROHS3 compliant. Insulation rated UL94 V-0. No official successor or cross-reference beyond sibling variants in the Beau 38721 series.
The 387216706 (6 circuits) and the 387216704 (4 circuits) share the same pitch, mounting style, and termination. The panel must have room for the additional two positions — the overall length and flange spacing differ. The wiring pattern (screw top / quick-connect bottom) is identical.
