Molex 387217303

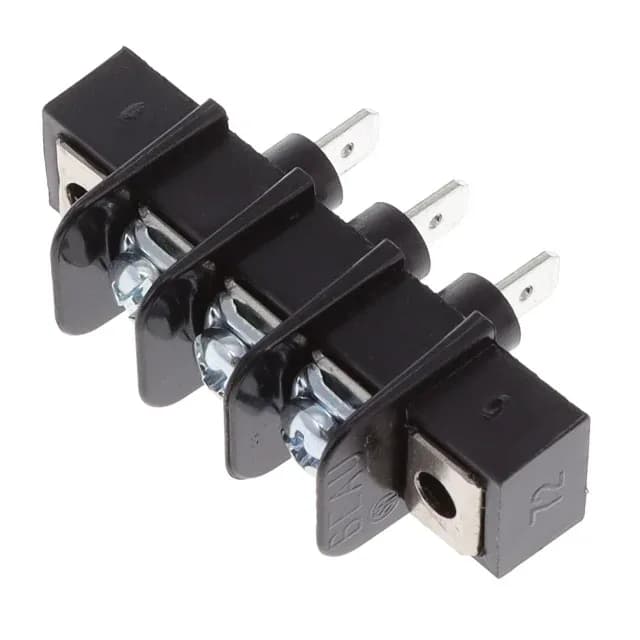

Molex Beau 38721 387217303 Barrier Strip, 3 Circuit, 0.375" Pitch

MPN387217303
Active

Molex Beau 38721 387217303 barrier strip, 3 circuits, 0.375" (9.53mm) pitch, 20 A, 300 V, 1 row, black, chassis/panel mount, screw top with captive plate, quick-connect (0.187") bottom, 12-22 AWG, UL94 V-0, bulk.

$3.22Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38721
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

387217303 key specifications
ParameterValue
SeriesBeau 38721
Barrier type2 Wall (Dual)
MountingChassis, Panel
Terminal block typeBarrier Block
Voltage rating300V
Current rating20A
Wire gauge12-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries3
Terminal screw materialSteel
Operating temperature-40°C ~ 100°C
ColorBlack

All specifications

387217303 additional specifications
ParameterValue
Material - insulationPolybutylene Terephthalate (PBT), Glass Filled
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
FeaturesFlange
Rows1
Top terminationScrews with Captive Plate
Bottom terminationQuick Connect (0.187\"), Insulated
Number of circuits3

Product details

The 387217303: Top termination uses screws with a captive plate — the plate stays captured under the screw head, so it won't drop out during field wiring. The bottom termination is a 0.187" quick-connect tab, insulated, for pre-made harness leads or spade terminals. Wire range is 12-22 AWG, covering common power and control circuit sizes. The terminal screw is steel with a zinc clear chromate finish.

Against the 2-circuit 387217302 at the same 0.375" pitch, this 3-circuit block adds one position for a third wire entry — the footprint grows by one pitch increment, so a panel cutout or DIN-rail adapter designed for the 2-circuit version won't directly accept this one without extra space. Against the 387216703 (also 3-circuit, same pitch), the key difference is top termination: 387217303 uses screws with a captive plate, while 387216703 uses plain screws. The captive plate holds the wire without the screw tip digging into the conductor — a practical advantage in high-vibration or repeated-termination service. The 387216703 is also rated 15 A vs this unit's 20 A, so the captive-plate version carries more headroom.

Frequently asked questions

Will 387217303 drop into a panel cutout made for the 2-circuit 387217302?

No — the 3-circuit block is one pitch increment longer than the 2-circuit version. The mounting hole pattern and overall length differ, so the panel cutout or DIN-rail adapter must be sized for the 3-circuit footprint.

Where can I buy the 387217303 and how is it quoted?

Sourced through independent distribution and quoted to order against an RFQ. Availability and current pricing are confirmed at quote time — no stock-holding or fixed price is published here.
