Molex 387317204

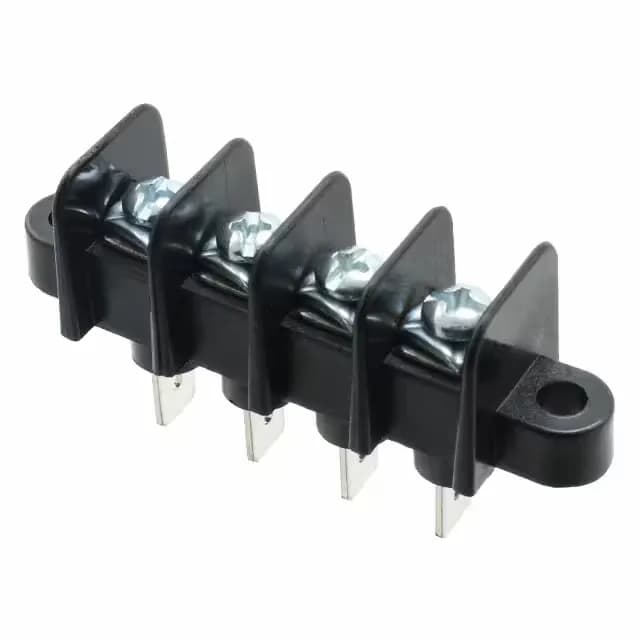

Molex Beau 38731 387317204 Barrier Block, 4-Circuit, 20A

MPN387317204
Active

Molex Beau 38731 387317204 barrier block, 4-circuit single-row, 0.438" (11.12mm) pitch, rated 20A at 300V, flange-mount chassis/panel, top screws with captive plate, bottom 0.250" insulated quick-connect, 12-22 AWG, UL94 V-0, RoHS3.

$4.55Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38731
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

387317204 key specifications
ParameterValue
SeriesBeau 38731
Barrier type2 Wall (Dual)
MountingChassis, Panel
Terminal block typeBarrier Block
Voltage rating300V
Current rating20A
Wire gauge12-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries4
Terminal screw materialSteel
Operating temperature-40°C ~ 100°C
ColorBlack

All specifications

387317204 additional specifications
ParameterValue
Material - insulationThermoplastic
Material flammability ratingUL94 V-0
Pitch0.438\" (11.12mm)
PackageBulk
FeaturesFlange
Rows1
Top terminationScrews with Captive Plate
Bottom terminationQuick Connect (0.250\"), Insulated
Number of circuits4

Product details

The 387317204: The top termination uses screws with a captive plate — the plate stays captured in the screw thread, so it does not drop out when the screw is fully backed off. That matters when you are landing a 12 AWG conductor and need the full thread engagement. The bottom termination is an insulated 0.250" quick-connect tab, which lets you pre-terminate a harness with a standard female quick-disconnect and snap it onto the block without tools. Wire range is 12-22 AWG, covering most panel power and control circuits.

Mounting and compliance

The flange on each end takes a screw for chassis or panel mounting — no DIN rail adapter, so plan for a drilled panel. The terminal screw is steel with a zinc clear chromate finish; the screw material and finish are listed for corrosion resistance in moderate environments.

Frequently asked questions

What compliance documentation is available for the 387317204?

The 387317204 is ROHS3 compliant and carries a UL94 V-0 flammability rating on the insulation material. The terminal screw is steel with a zinc clear chromate finish.

How do I get current pricing and availability for the 387317204?

The 387317204 is sourced and quoted to order against an RFQ through independent distribution. Current pricing and stock availability are confirmed at the time of quote.
