Molex 387600111

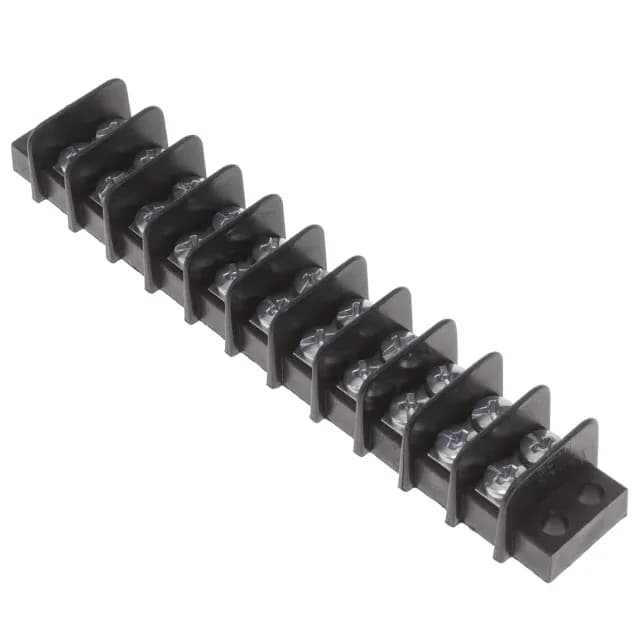

Molex Beau 38760 387600111 Barrier Block, 11 Circuits, 0.375" Pitch

MPN387600111
Active

Molex Beau 38760 387600111 Barrier Block, 11 Circuits, 0.375" (9.53 mm) Pitch, 2 Rows, 15 A, 300 V, Top Screw Termination, Closed Bottom, Flanged Chassis/Panel Mount, Black, UL94 V-0, 14-22 AWG, Tray.

$7.24Ref. price · indicative, final on quote
Molex 387600111 datasheet (PDF)
RoHSROHS3 Compliant
SeriesBeau 38760
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

387600111 key specifications
ParameterValue
SeriesBeau 38760
Barrier type2 Wall (Dual)
MountingChassis, Panel
Terminal block typeBarrier Block
Voltage rating300V
Current rating15A
Wire gauge14-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries22
Terminal screw materialSteel
ColorBlack
Material - insulationThermoplastic

All specifications

387600111 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageTray
FeaturesFlange
Rows2
Top terminationScrews
Bottom terminationClosed
Number of circuits11

Product details

Barrier Strip for Panel Wiring — 11 Circuits, 0.375" Pitch

The Molex Beau 38760 387600111 is an 11-circuit barrier block in the Beau 38760 series, using a 0.375" (9.53 mm) pitch dual-wall design. It terminates top-side with screws and has a closed bottom, so wiring lands on the screw terminals and the back is fully enclosed — no exposed solder tails or through-board pins. Rated 15 A at 300 V with UL94 V-0 thermoplastic insulation, it suits control panels, power distribution blocks, and industrial relay wiring where a screw-terminated, chassis-mounted barrier strip is the standard interconnect.

Frequently asked questions

When sourcing 387600111, what is the closest functional second-source — 387600114?

The 387600114 is the 14-circuit sibling in the same Beau 38760 series with identical pitch, current, voltage, and mounting. It is a direct functional alternative only if the BOM requires 14 circuits instead of 11. For an 11-circuit position, the 387600111 is the correct match.

Will 387600111 drop into a panel that was specified around 387600114 without rewiring?

No. The mounting hole pattern and pitch are identical, but the 387600111 has 11 circuits versus 14 on the 387600114. Three circuits would be left unwired, so the panel would need rewiring to match the lower circuit count.

What compliance documentation does this brand provide for 387600111?

The 387600111 is RoHS3 compliant. The thermoplastic insulation carries a UL94 V-0 flammability rating. Documentation for RoHS and UL is available from the manufacturer.

How do I get current pricing and availability for 387600111?

Pricing and availability are confirmed at quote time. Submit an RFQ through this listing; the part is sourced to order from independent distribution.
