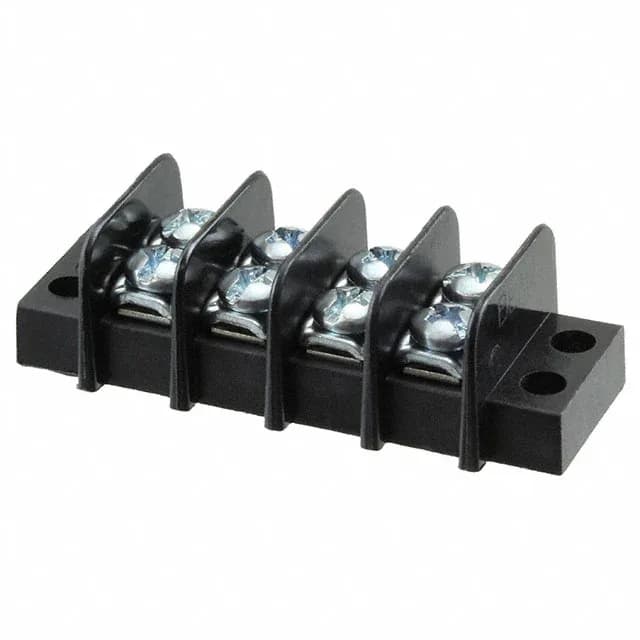

Molex Beau 38760 387600304 Barrier Strip, 4 Circuit, 0.375" Pitch
MPN387600304
Active
Molex Beau 38760 387600304 barrier strip, 4 circuits, 0.375" (9.53mm) pitch, 15 A, 300 V, 14-22 AWG, screws with captive plate, chassis/panel mount, black UL94 V-0, tray.
$3.75Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38760
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Beau 38760 |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 15A |
| Wire gauge | 14-22 AWG |
| Terminal screw finish | Zinc, Clear Chromate |
| Number of wire entries | 8 |
| Terminal screw material | Steel |
| Color | Black |
| Material - insulation | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.375\" (9.53mm) |
| Package | Tray |
| Features | Flange |
| Rows | 2 |
| Top termination | Screws with Captive Plate |
| Bottom termination | Closed |
| Number of circuits | 4 |
Frequently asked questions
What is the pitch of 387600304?
The pitch is 0.375" (9.53 mm) between centers.
What is the color of 387600304?
The housing is black.
Will 387600304 drop into a panel specified for 387600303?
Yes, the footprint and mounting flanges are identical — the only difference is the 387600304 has 4 circuits instead of 3.
What compliance documentation does Molex provide for 387600304?
The 387600304 is ROHS3 compliant. The housing material carries a UL94 V-0 flammability rating.
