Termination and Wire Entry

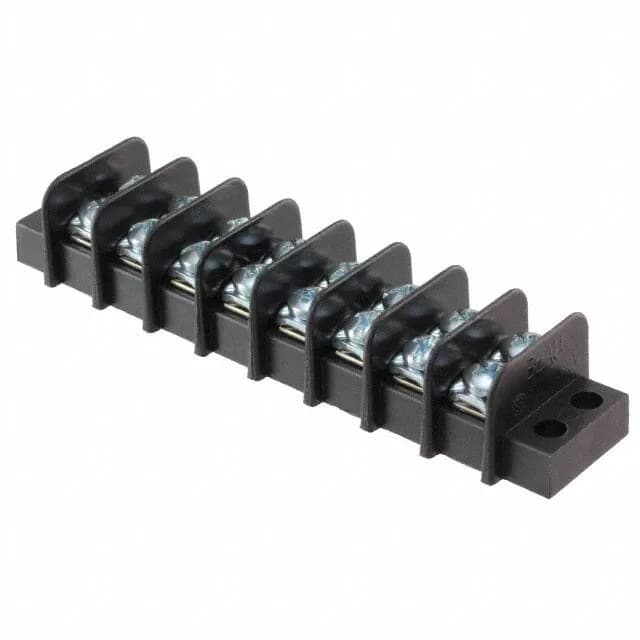

The 387600308: Top termination uses screws with a captive plate — the plate stays captured under the screw head, so it does not drop out when the screw is backed off for wire insertion. Accepts 14-22 AWG wire. The bottom termination is closed, meaning the screw terminals are only accessible from the top; this is a common arrangement for panel-mounted blocks where the back side is against the panel or enclosure wall. With 2 rows and 16 wire entries, each circuit accommodates two wires — one per row — allowing daisy-chain or feed-through wiring.
Flange on each end for screw-fastening to chassis or panel. Steel terminal screws with zinc clear chromate finish. Single-piece thermoplastic housing.
