Beau 38760 Series — where this part sits

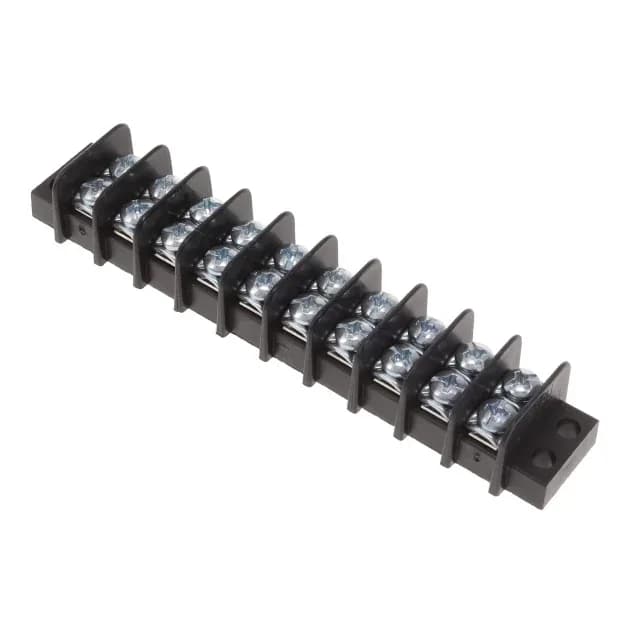

The Molex 387600310 is the 10-circuit dual-row member of the Beau 38760 series, a dual-wall barrier block family sized for industrial panel wiring. It terminates at 0.375 in (9.53 mm) pitch with a top screw-and-captive-plate entry and a closed bottom — the closed bottom means no standoffs or wire exit beneath the block, so the panel cutout must accommodate the full housing height.
Current rating — the limiting factor on this series
Wire range is 14-22 AWG with 20 entries across the 10-position body — two entries per circuit. The captive plate on the top termination keeps the screw from backing out under vibration, which matters for panel-mounted industrial service.
Mounting, material, compliance
Chassis and panel flange mounting — the flange feature on this variant (absent on some Beau 38760 variants) adds a bolting face at each end of the strip. The housing is black thermoplastic rated UL94 V-0, and the terminal screws are steel with zinc clear-chromate finish — adequate for indoor industrial environments but not specified for salt-mist or outdoor exposure without additional protection. The connector carries ROHS3 Compliant status. No UL file number or VDE rating appears in the listing — for safety-class circuit applications requiring a recognised agency mark, confirm against the full product drawing before specifying.
