Molex 387700102

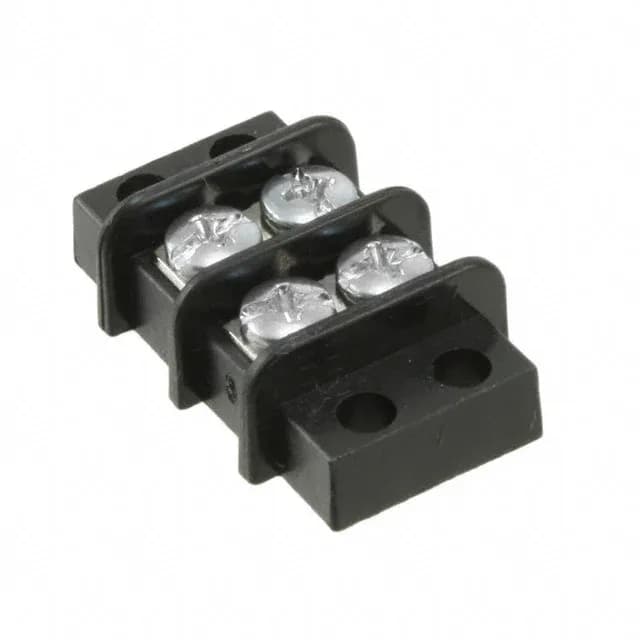

Molex Beau 38770 387700102 Barrier Strip, 2 Circuit, 0.375" Pitch

MPN387700102
Active

Molex Beau 38770 barrier strip, 387700102, 2 circuits, 0.375" (9.53 mm) pitch, 15 A at 300 V, dual-wall black PBT housing, flange-mount, top-screw termination, 14-22 AWG, 4 wire entries, bulk.

$2.47Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38770
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

387700102 key specifications
ParameterValue
SeriesBeau 38770
Barrier type2 Wall (Dual)
MountingChassis, Panel
Terminal block typeBarrier Block
Voltage rating300V
Current rating15A
Wire gauge14-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries4
Terminal screw materialSteel
ColorBlack
Material - insulationPolybutylene Terephthalate (PBT)

All specifications

387700102 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
FeaturesFlange
Rows2
Top terminationScrews
Bottom terminationClosed
Number of circuits2

Product details

The Molex Beau 38770 387700102 is a 2-circuit barrier strip on a 0.375" (9.53 mm) pitch, rated 15 A at 300 V. The dual-wall (2 Wall) black PBT housing isolates each circuit from the next, and the flange-mount pattern lets you bolt it to a chassis or panel. Top termination is screw-clamp; bottom termination is closed — no feed-through pins, so the wire lands and stays. Accepts 14-22 AWG with 4 wire entries total (two per circuit), which is handy for looping power through to the next block without a separate jumper.

The 0.375" pitch is generous — it gives you room to land 14 AWG stranded without crowding the adjacent terminal. The 15 A per circuit is the headline number, but with 14 AWG and a screw termination, you'll actually hit the wire's ampacity before the block's rating in most panels. The UL94 V-0 PBT housing means it's fine inside any equipment enclosure that requires a flammability rating. Terminal screws are steel with zinc clear chromate finish — good corrosion resistance for industrial cabinet environments.

The 387700107 is the 7-circuit version of the same Beau 38770 series — identical pitch (0.375"), current (15 A), voltage (300 V), dual-wall barrier, flange-mount, and black PBT housing. The only difference is circuit count: 2 circuits here vs 7 on the 387700107. If your BOM calls for 7 positions, the 387700107 drops into the same panel layout with the same wire gauge range and termination style — just more circuits per block. No rewiring of the mounting hole pattern needed.

Frequently asked questions

Where can I buy 387700102 and get a price?

The 387700102 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your quantity.

Will 387700102 drop into a panel specified for 387700107 without rewiring?

Yes — both share the same 0.375" pitch, flange-mount pattern, and 14-22 AWG wire range. The only difference is circuit count: 2 circuits on the 387700102 vs 7 on the 387700107. The mounting footprint and termination style are identical.
