Molex 387700107

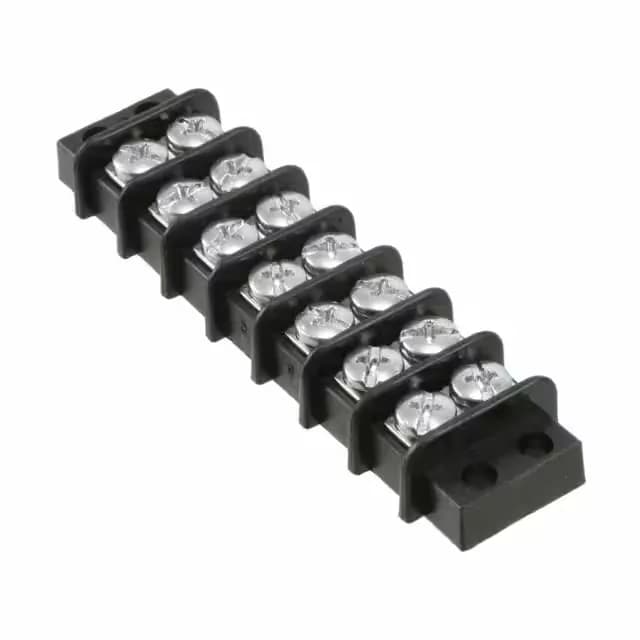

Molex Beau 38770 387700107 Barrier Block, 7 Circuit, 0.375" Pitch

MPN387700107
Active

Molex Beau 38770 387700107, Barrier Block, 7 Circuits, 0.375" (9.53mm) Pitch, 15 A, 300 V, 2 Rows, Screws Top, Closed Bottom, Flange, Chassis/Panel Mount, Black, UL94 V-0, ROHS3.

$5.08Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesBeau 38770
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

387700107 key specifications
ParameterValue
SeriesBeau 38770
Barrier type2 Wall (Dual)
MountingChassis, Panel
Terminal block typeBarrier Block
Voltage rating300V
Current rating15A
Wire gauge14-22 AWG
Terminal screw finishZinc, Clear Chromate
Number of wire entries14
Terminal screw materialSteel
ColorBlack
Material - insulationPolybutylene Terephthalate (PBT)

All specifications

387700107 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.375\" (9.53mm)
PackageBulk
FeaturesFlange
Rows2
Top terminationScrews
Bottom terminationClosed
Number of circuits7

Product details

The 387700107: Top termination uses steel screws with a zinc, clear chromate finish, accepting wire from 14 AWG to 22 AWG. The block has 14 wire entries total — two per circuit — allowing daisy-chaining or dual-feed on each position.

The 387700107 is the 7-circuit member of the Beau 38770 series. If the BOM requires a different position count, the series offers the 387700109 at 9 circuits, the 387700112 at 12 circuits, and the 387700114 at 14 circuits — all sharing the same 0.375" (9.53mm) pitch, 15 A / 300 V rating, dual-wall construction, and flange mount. The choice is strictly a circuit-count decision; the footprint length scales with position count, so the panel cutout and wiring plan need to match.

Frequently asked questions

What is the closest functional alternative to 387700107 if I need more circuits?

The 387700112 (12 circuits), 387700109 (9 circuits), and 387700114 (14 circuits) are direct same-series alternatives sharing the same pitch, ratings, and construction. The only difference is the number of circuits.

What compliance documentation does the 387700107 carry?

The 387700107 is ROHS3 compliant and the insulation material carries a UL94 V-0 flammability rating.

Where can I buy the 387700107 and what is the lead time?

The 387700107 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at the time of quote.
