Molex 389690003

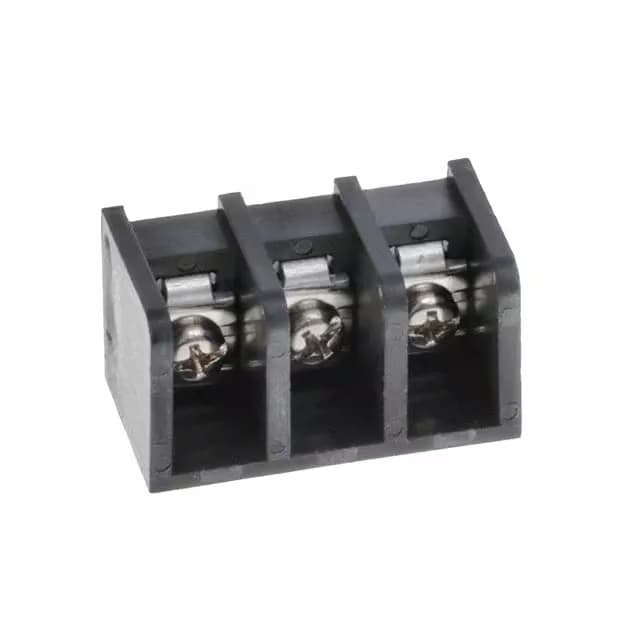

Molex 38969 389690003 Barrier Strip, 3 Circuits, 0.500" Pitch, 50 A

MPN389690003
Active

Molex 38969 series 389690003 barrier terminal block, 3 circuits, 0.500" (12.70mm) pitch, 50 A, 600 V, through-hole PC pin, screws with captive plate, black, UL94 V-0.

$3.13Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series38969
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

389690003 key specifications
ParameterValue
Series38969
Barrier type3 Wall (Tri)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating600V
Current rating50A
Wire gauge8-20 AWG
Terminal screw finishNickel
Number of wire entries3
Terminal screw materialSteel
Operating temperature-40°C ~ 120°C
ColorBlack

All specifications

389690003 additional specifications
ParameterValue
Material - insulationPolybutylene Terephthalate (PBT)
Material flammability ratingUL94 V-0
Pitch0.500\" (12.70mm)
PackageTray
Rows1
Top terminationScrews with Captive Plate
Bottom terminationPC Pin
Number of circuits3

Product details

The Molex 389690003 is a 3-circuit barrier terminal block from the 38969 series, designed for through-hole mounting with PC pin termination. It accepts 8-20 AWG wire and uses screws with a captive plate for top termination — the captive plate keeps the screw retained during field service, a practical detail when you are working in a panel and do not want to lose hardware. Rated 50 A at 600 V, this strip handles the main power feed in industrial control cabinets, power distribution panels, and similar equipment where a UL94 V-0 rated PBT insulator is required.

The 389690003 shares the same 0.500" pitch, 50 A rating, and 3-wall barrier design as the 6-circuit 389690006. If your panel schematic calls for 3 circuits, this is the one; if you need 6, step up to the 389690006 without changing any other specification.

Frequently asked questions

Will the 389690003 drop into a panel that was specified around the 389690006?

The 389690003 is a 3-circuit version of the same 38969 series, sharing the same 0.500" pitch, 50 A rating, and 3-wall barrier design. It will not physically fit a 6-circuit footprint — the board hole pattern and panel cutout must match the circuit count.

Where can I buy the 389690003?

The 389690003 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
