Molex 393570010

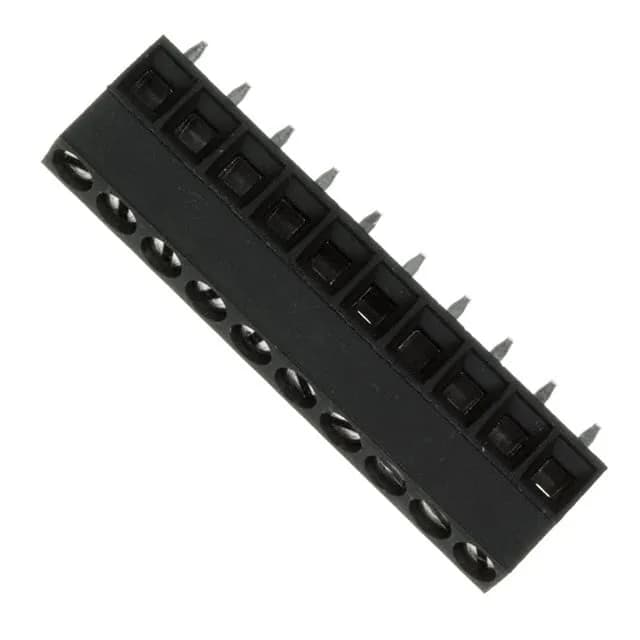

Molex Eurostyle 393570010, 10-Pos PCB Terminal Block, 3.50mm Pitch

MPN393570010
Active

Molex Eurostyle 39357 393570010, 10-position, 1-level PCB terminal block, 0.138" (3.50mm) pitch, side-entry, through-hole, screw rising cage clamp, 12 A, 300 V, 16-28 AWG, Black housing, Bulk.

$5.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle 39357
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

393570010 key specifications
ParameterValue
SeriesEurostyle 39357
MountingThrough Hole
Voltage300 V
Current12 A
Wire gauge16-28 AWG
Wire terminationScrew - Rising Cage Clamp
Operating temperature-40°C ~ 105°C
ColorBlack
Housing materialPolyamide (PA), Nylon
Clamp material - platingCopper Alloy - Nickel Plated
Screw material - platingCopper Alloy - Nickel Plated
Contact material - platingCopper Alloy - Tin Plated

All specifications

393570010 additional specifications
ParameterValue
Pitch0.138\" (3.50mm)
PackageBulk
Screw threadM3
Torque - screw0.31 Nm (2.7 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level10

Product details

The Molex Eurostyle 39357 393570010 is a 10-position, single-level PCB terminal block on a 0.138" (3.50mm) pitch. It's a side-entry, through-hole mounted block with a screw rising cage clamp — the kind you'd find on a PLC I/O card, a power supply board, or an industrial controller where you need to land field wiring directly onto the PCB without a harness. The black polyamide housing and tin-plated copper alloy contacts handle the usual industrial environment: -40°C to 105°C operating range, 12 A per position at 300 V, accepting 16 to 28 AWG wire.

The 3.50 mm pitch is tight enough to keep the board footprint compact — you can route a trace between adjacent pads on a standard 1 oz copper layer — but wide enough that the screw terminals don't crowd each other when you're landing 16 AWG wire. The rising cage clamp (torque spec: 0.31 Nm, M3 screw) grabs the conductor against a nickel-plated copper alloy clamp, giving a gas-tight joint that doesn't loosen under thermal cycling.

Frequently asked questions

Where can I buy 393570010 and get a price?

The 393570010 is sourced and quoted to order against an RFQ through independent distribution. Submit a request for the quantity you need — availability and current pricing are confirmed at quote time.
