Molex 393710003
MPN393710003
Active

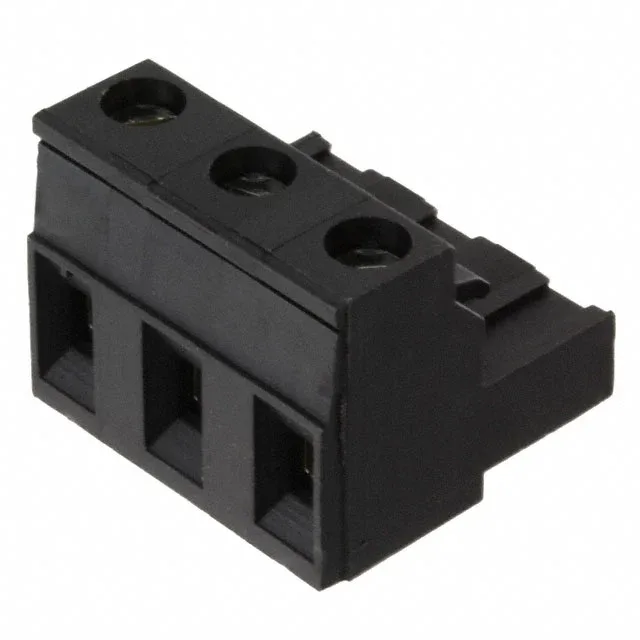

TERM BLOCK PLUG 3POS STR 7.5MM
$2.28Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle 39371
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle 39371 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 12-30 AWG |
| Operating temperature | 110°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.610\" (15.49mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.295\" (7.50mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
