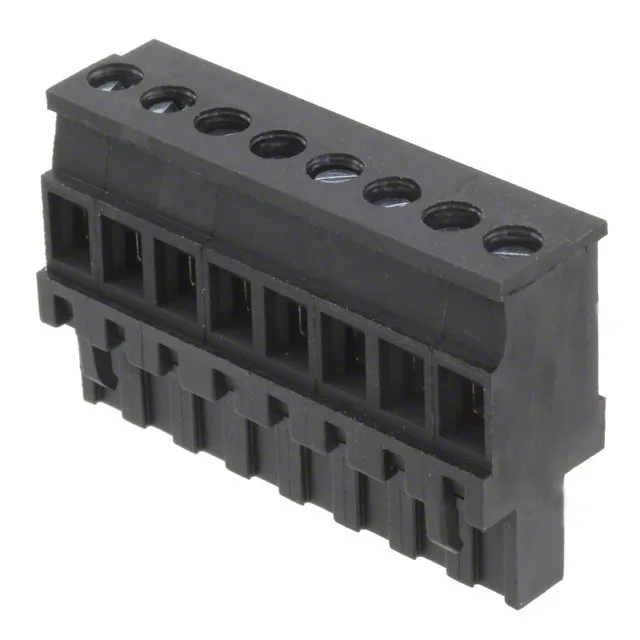

Molex 395333008
MPN395333008
Active
TERM BLOCK PLUG 8POS 5.08MM
$7.16Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle ESE 39533
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Eurostyle ESE 39533 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 90° |
| Wire strip length | 5mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 1.020\" (25.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Wire Side) |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
