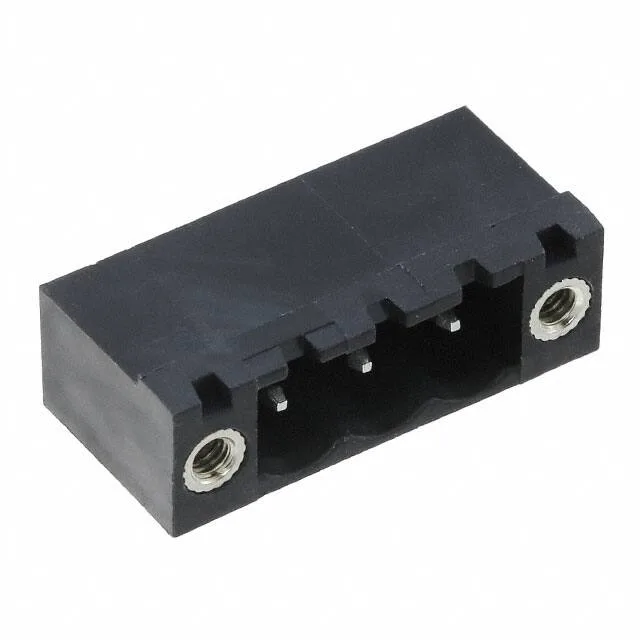

Molex 395360003
MPN395360003
Active
TERM BLOCK HDR 3POS 90DEG 5.08MM
$1.63Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle ESE 39536
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Eurostyle ESE 39536 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 18 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
