The Molex 395430006 is a 6-position side-entry PCB terminal block from the Eurostyle ESE 39543 series, built for fixed-wire termination on through-hole boards. The 0.197" (5.00 mm) pitch gives enough spacing for 10 A per level at 300 V — a common rating for industrial control wiring and light power distribution.

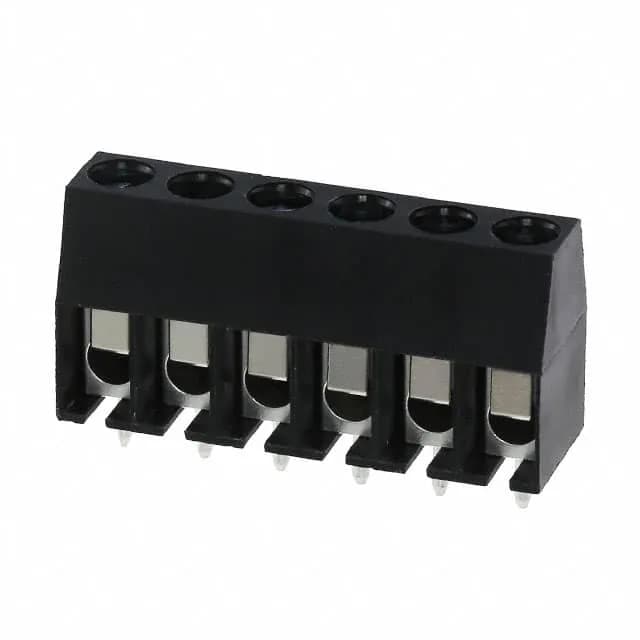

Molex Eurostyle ESE 39543 395430006, 6-Pos 5mm PCB Terminal Block
MPN395430006
Active
Molex Eurostyle ESE 39543 395430006, 6-position side-entry terminal block, 0.197" (5.00mm) pitch, 10 A, 300 V, through-hole, screw termination, tin-plated brass contacts, black polyamide housing.
$2.12Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle ESE 39543
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Eurostyle ESE 39543 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 14-24 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Screw material - plating | Steel |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Torque - screw | 0.34 Nm (3.0 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 6 |
Product details
Frequently asked questions
What wire gauge does 395430006 accept?
It accepts 14-24 AWG wire, terminated via a screw clamp with leaf spring and wire guard.
Where can I buy 395430006 and how is it quoted?
It is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.
