Molex 395430008

Molex Eurostyle ESE 39543 395430008, 8-Pos 5mm PCB Terminal Block, 10 A

MPN395430008
Active

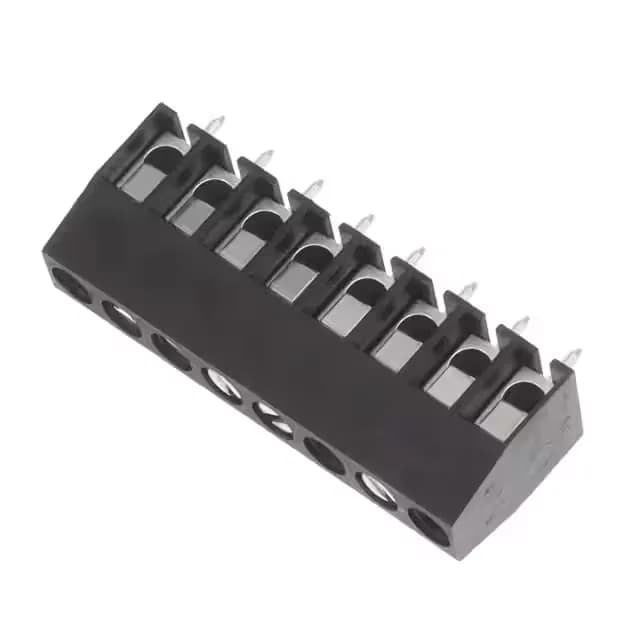

Molex Eurostyle ESE 39543 395430008, 8-position, single-level PCB terminal block, 0.197" (5.00mm) pitch, through-hole, screw termination with leaf spring and wire guard, 10 A, 300 V, 14-24 AWG, Black housing, PA66, RoHS3.

$2.74Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurostyle ESE 39543
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

395430008 specifications
ParameterValue
SeriesEurostyle ESE 39543
MountingThrough Hole
Voltage300 V
Current10 A
Wire gauge14-24 AWG
Wire terminationScrew - Leaf Spring, Wire Guard
Operating temperature-40°C ~ 105°C
ColorBlack
Housing materialPolyamide (PA66), Nylon 6/6
Screw material - platingSteel
Contact material - platingBrass - Tin Plated
Pitch0.197\" (5.00mm)
PackageBulk
Torque - screw0.34 Nm (3.0 Lb-In)
Number of levels1
Mating orientationHorizontal with Board
Positions per level8

Product details

The Molex Eurostyle ESE 39543 395430008 is an 8-position, single-level PCB terminal block on a 0.197" (5.00mm) pitch. It's a side-entry design — wires enter parallel to the board — terminated with a screw and leaf spring that cinches down through a wire guard. That guard keeps stranded conductors from fanning out under the screw head, which is a practical touch for 14-24 AWG field wiring in control panels or lighting fixtures. The through-hole mounting and Black PA66 housing are standard for this duty.

The 395443008 carries a higher current rating (15 A vs 10 A) and accepts a wider wire range (12-30 AWG vs 14-24 AWG). For a panel originally built around the 395443008, the 395430008 would work only if the circuit load stays under 10 A and the wire gauge is within 14-24 AWG — and the PCB pitch matches. Sourcing both as active parts is straightforward, but choose by the board layout and the current draw, not by the position count alone.

No last-time-buy or end-of-life notice is on record. For compliance documentation, the RoHS3 declaration is established; UL and IEC ratings are not stated in the listing, so verify against your local code if those marks are required.

Frequently asked questions

Where can I buy the 395430008 and how do I get a price?

The 395430008 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your BOM quantity to get a firm quote.

Will the 395430008 drop into a panel specified around the 395443008 without rewiring?

No — the 395430008 uses a 5.00 mm pitch, while the 395443008 uses a 5.08 mm pitch. The PCB footprint differs, and the termination style (leaf spring vs rising cage clamp) is different. A direct swap would require a board layout change.
