Screw Termination with Leaf Spring

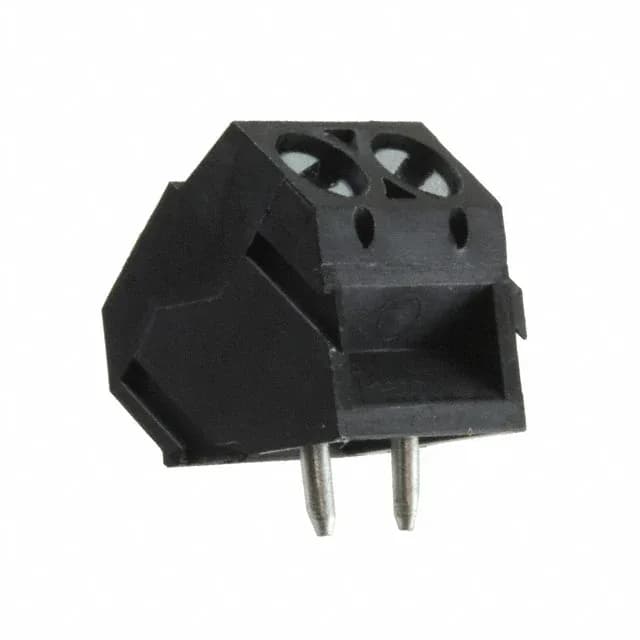

The 395430202: Wire termination uses a screw-driven leaf spring that clamps the conductor against a wire guard — this is a common Eurostyle termination that gives a gas-tight connection without a separate ferrule. The steel screw is plated; the contact itself is brass with tin plating, which is standard for this class of terminal block and suitable for the 10 A rating. The 0.34 Nm torque spec is moderate — a standard small screwdriver with a torque-limiting handle will hit it cleanly without stripping the screw head.
Board Layout: 5.00 mm Pitch, 45° Wire Exit
The 0.197" (5.00 mm) pitch is the centre-to-centre spacing of the two positions — standard for this Eurostyle family and compatible with a 5.00 mm grid. The 45° mating orientation means the wire exits at an angle to the PCB, which can help route wires in tight enclosures where a straight vertical or horizontal exit would interfere with adjacent components.
