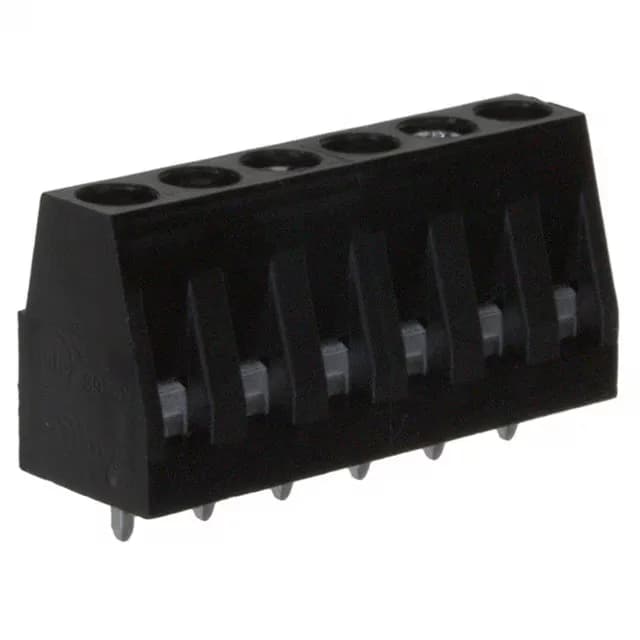

Molex Eurostyle ESE 39544 395443006, 6-Position 5.08mm PCB Terminal Block
Molex Eurostyle ESE 39544 395443006, 6-position PCB terminal block, 0.200" (5.08mm) pitch, 15 A, 300 V, through-hole horizontal mount, screw-rising cage clamp, tin-plated brass contacts, PA66 black housing, -40°C to 105°C, 12-30 AWG.
Specifications
| Parameter | Value |
|---|---|
| Series | Eurostyle ESE 39544 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 15 A |
| Wire gauge | 12-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Brass - Nickel Plated |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Brass - Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Screw thread | M3 |
| Torque - screw | 0.51 Nm (4.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 6 |
Frequently asked questions
What is the closest functional second-source to 395443006?
The 5-position 395443005 and the 8-position 395443008 are the direct same-series siblings — same pitch, same current and voltage ratings, same mounting and termination. They are position-count alternatives, not a second-source from a different manufacturer.
Will 395443006 drop into a panel specified around 395443005 without rewiring?
No — the 395443006 is a 6-position block; the 395443005 is a 5-position block. The footprint per position is identical, but the board layout must accommodate the extra position's land pattern and the additional wire entry.
What compliance documentation does Molex provide for 395443006?
The 395443006 is ROHS3 compliant. No UL, CE, or VDE listing is stated in the available documentation.
