Molex 397000803

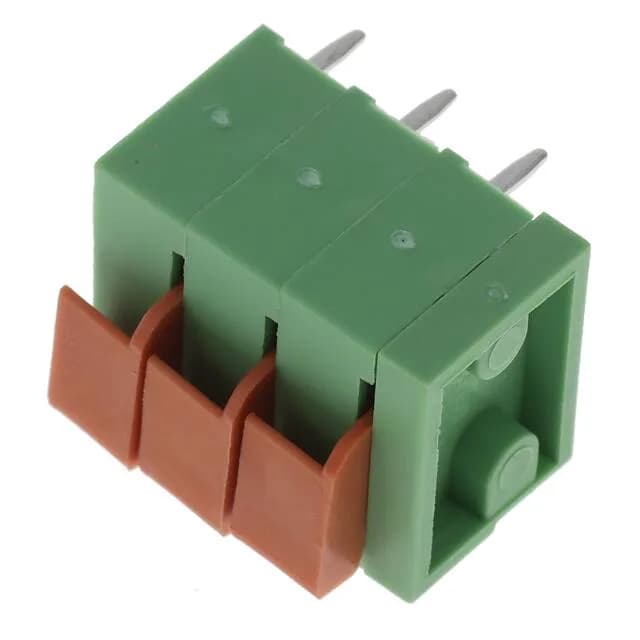

Molex Eurostyle 39700 397000803

MPN397000803
Active

Molex Eurostyle 39700 397000803, 3-position, 5.00 mm pitch, 10 A, 300 V, push-button screwless clamp, through-hole, horizontal PCB entry, green PA66 housing, tin-plated brass contacts, RoHS3.

$1.85Ref. price · indicative, final on quote
Molex 397000803 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEurostyle 39700
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

397000803 specifications
ParameterValue
SeriesEurostyle 39700
MountingThrough Hole
Voltage300 V
Current10 A
Wire gauge14-22 AWG
Wire terminationScrewless - Push Button Clamp
Operating temperature-40°C ~ 105°C
ColorGreen
Housing materialPolyamide (PA66), Nylon 6/6
Clamp material - platingSteel, Stainless
Contact material - platingBrass - Tin Plated
Pitch0.197\" (5.00mm)
PackageBulk
Number of levels1
Mating orientationHorizontal with Board
Positions per level3

Product details

3-Position Screwless PCB Terminal Block for Power Distribution

The Molex Eurostyle 39700 397000803 is a 3-position, single-level PCB terminal block on a 5.00 mm pitch, rated 10 A at 300 V. It terminates 14-22 AWG wire via a push-button screwless clamp — no tool needed for insertion or release. The green PA66 housing mates horizontally with the board, and the tin-plated brass contacts handle the rated current without plating migration concerns in moderate environments.

The 397000803 is RoHS3 compliant and carries an active lifecycle status.

Frequently asked questions

Does 397000803 accept 14 AWG wire?

Yes, the wire gauge range is 14-22 AWG. The push-button clamp accepts solid or stranded wire within that range without a ferrule.

Is 397000803 RoHS compliant?

Yes, it is RoHS3 compliant per the lifecycle record.
