Product Overview

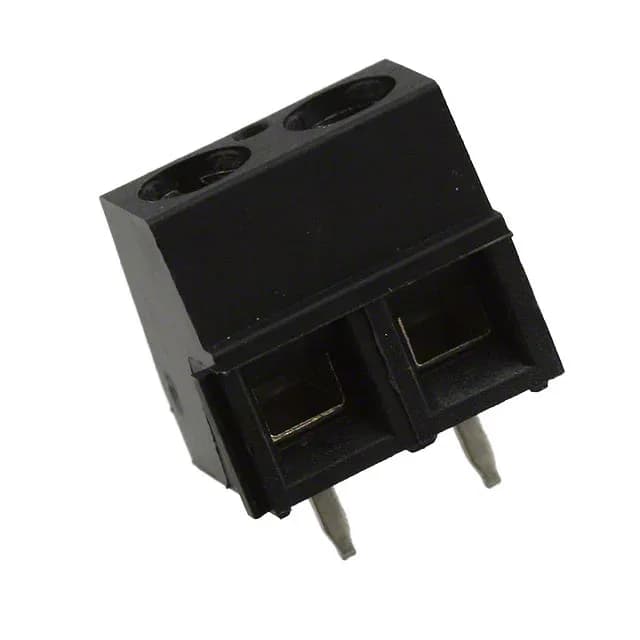

The Molex Eurostyle 39880 398800302 is a 2-position PCB-mount terminal block from the Eurostyle 39880 series. It uses a screw rising cage clamp termination — the screw drives a clamp that presses the wire against a current bar, giving a gas-tight connection that handles vibration better than a simple screw-and-washer. Rated 13.5 A at 300 V, it accepts wire from 16 AWG down to 30 AWG.
Termination and Assembly
Side interlocking features allow multiple 39880-series blocks to be ganged together on the same PCB without gaps, maintaining the 5.08 mm pitch across the assembly.
